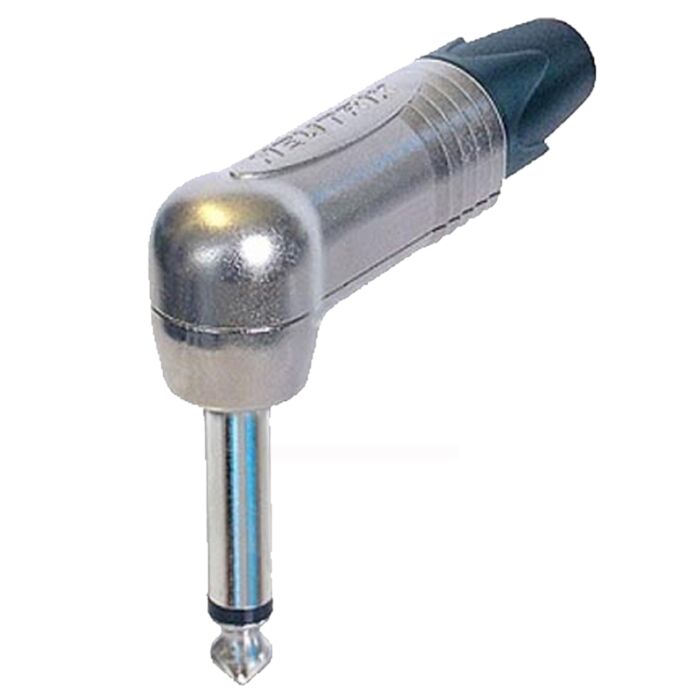

Neutrik NP2RX Silver Quarter Mono Jack Angled Plug Connector
Multibuy discounts calculated at checkout
- Buy 5 for £4.76 each and save 5%
- Buy 10 for £4.51 each and save 10%
- Buy 15 for £4.26 each and save 15%
- Buy 20 for £4.01 each and save 20%
Mono Instrument ¼ inch Jack Connector, 2 Pole, Male Right-Angle, Nickel Contacts, Nickel Housing
Neutrik NP2RX
Mono Instrument ¼ inch Jack Connector, 2 Pole, Male Right-Angle, Nickel Contacts, Nickel Housing
Neutriks superior build quality is evident in this right angle ¼ inch jack connector. Comprising of a solid die cast metal casing and boasting a precise one piece machined tip, this connector is ideal for applications where space is at a premium. The tough plastic boot and incredibly robust chuck type strain relief make this connector very hard wearing. This classic looking connector will give your sound a bright and lively tone. Ideal for use with guitars and other mono/unbalanced instruments
The Nickel Contacts offer sound conductivity and durability
2 Pole relates to the amount of carrier signals inside the cable/connector assembly, in this case two. The first carrier signal is the information signal and the second is the ground. This can be used to create an unbalanced or mono cable, making it ideal for use with guitars and instruments. It can still be used in balanced sockets but the benefits of balanced audio will not be achieved
Tech Specs
Electrical
- Contact resistance - depends on mating connector mΩ
- Dielectric strength - 1 kVdc
- Insulation resistance - > 2 GΩ (initial)
- Insulation resistance - ≥ 1 GΩ (after damp heat test)
- Rated current per contact - depends on mating connector A
- Rated voltage - 50 V
Material
- Bushing - Polyacetal (POM) + PU
- Contact plating - 2 µm Ni (Su)
- Contacts - Brass (CuZn39Pb3)
- Insert - Polyamide (PA 6.6 30 % GR)
- Shell - Zinc diecast (ZnAl4Cu1)
- Contact Shell plating - Nickel
- Strain relief - Polyacetal (POM)
Delivery Speed | Next Day delivery available if 'In Stock' |
---|---|
Mounting Method | Cable Mount - Solder |
Series Range Name | Neutrik PX Series |
Contact Material | Silver Plated |
Number of Contacts | 2 Pole |
Pack Quantity | Pack of 1 |
Manufacturer URL | Download Data Sheet |
Data Sheet URL | Download Data Sheet |
