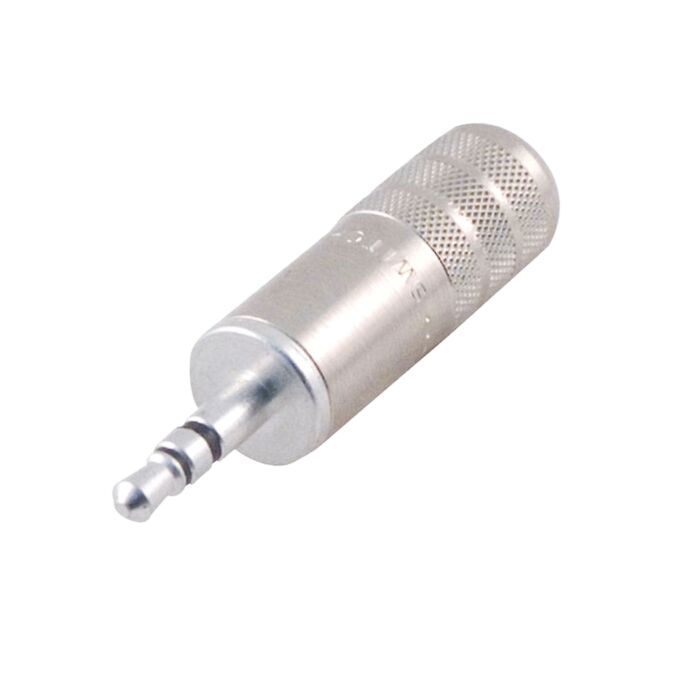

3.5mm Switchcraft Silver 35HDNN Mini Jack Connector
£7.79
In stock
We have 29 items in stock!
SKU
MINI.JACK_35HDNN
- Buy 10 for £7.40 each and save 5%
- Buy 20 for £7.01 each and save 10%
- Buy 50 for £6.62 each and save 15%
- Buy 100 for £6.23 each and save 20%
Tough Mini jacks from Switchcraft, PLUS an extra large cable entry so that you can use heavier gauge cables
Tough Mini jacks from Switchcraft, PLUS an extra large cable entry so that you can use heavier gauge cables
35HD Series Straight Plugs
Sturdy construction 3.5mm plugs with insert molded plug finger. Longer cable clamp and larger solder terminals for easier plug assembly and more room for solder connections. Longer handle for improved gripping surface and easy plug withdrawl from jack.
SPECIFICATIONS
Contact Resistance:<0.020 ohms
Dielectric Withstand Voltage: 250 VAC (min.)
Insulation Resistance @ 500 VDC: 2,000 megohms (min.)
Working Voltage: 250 VAC, 140 VDC
Current Carry @ Working Voltage: 4 AMPS
Insert/Withdrawal Force: Typical 2.5/2 pounds
Temperature Range: 0° to 66° Centigrade (operating) Passed MIL-STD-202F Method 107G (Thermal Shock), and Method 201 (Vibration)
Life: 5000 cycles
Maximum Cable Size: .250" dia.
MATERIALS
Tip Rod: Copper alloy, tin, or gold-plated
Ring: Copper alloy, nickel, or gold-plated
Sleeve: Copper alloy, nickel, or gold-plated
Handle: Copper alloy, nickel, or gold-plated
Cable Clamp: C.R.S., tin-plated
Solder Terminal: Copper alloy, tin-plated
Tubular Insulator: Clear plastic
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Application | Tour & Studio Grade |
| Contact Material | Silver Plated |
| Number of Contacts | 3 Pole |
