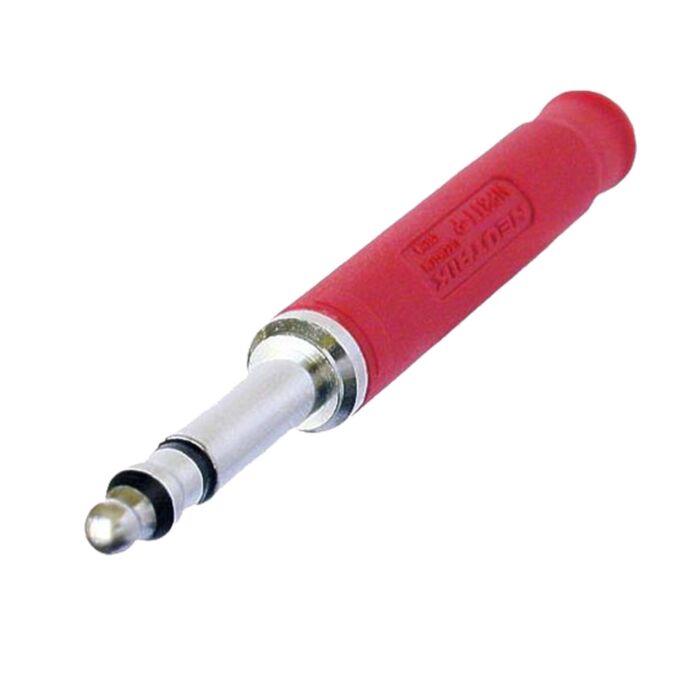

Neutrik NP3TT-P-R 4.4mm TT Bantam Jack Connector. RED Balanced Jack Pro.
£6.01
In stock
We have 176 items in stock!
SKU
BANTAM_NP3TT-P-R
- Buy 10 for £5.71 each and save 5%
- Buy 20 for £5.41 each and save 10%
- Buy 50 for £5.11 each and save 15%
- Buy 100 for £4.81 each and save 20%
4.4 mm (0.173") tiny telefone plug bantam type, solder termination for T+R, hex crimp of S with a standard RG58 crimp tool, black plastic housing, Nickel contacts. Ideal use with TT patch panels.
4.4 mm (0.173") tiny telefone plug bantam type, solder termination for T+R, hex crimp of S with a standard RG58 crimp tool, black plastic housing, Nickel contacts. Ideal use with TT patch panels.
Features & Benefits
• Designed for pro audio applications
• Robust egonomic design - long-lasting and depenable
• Standard HEX crimp cable clamp for shield termination and cable retention
• Colored sleeves available for coding and marking
Technical Information
Electrical
Contact resistance - depends on mating connector mΩ (inner)
Dielectric strength - 1 kVdc
Insulation resistance > 2 GΩ (initial)
Rated current per contact - depends on mating connector A
Rated voltage - 50 V
Mechanical
Cable O.D. 4 - 4.8 mm
Crimp Mass 5,41 Hex crimp (shield) acc. IEC 60803 (die designation D)
Lifetime > 1000 mating cycles
Wiresize - 0,25 mm²
Wiresize - 24 AWG
Wiring - Solder contacts
Material
Bushing - Polyacetal (POM) + PU
Contact plating - 2 µm Ni (Su)
Contacts - Bronze (CuSn6) (Tip)
Insert - Polyamide (PA 6.6 30 % GR)
Shell - Brass (CuZn39Pb3)
Shell plating - Polyamide (6 30% GR) (black)
Environmental
Standard compliance - MIL-P-642/13
Solderability - Complies with IEC 68-2-20
Temperature range - -20 °C to +65 °C
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Contact Material | Silver Plated |
| Number of Contacts | 3 Pole |
