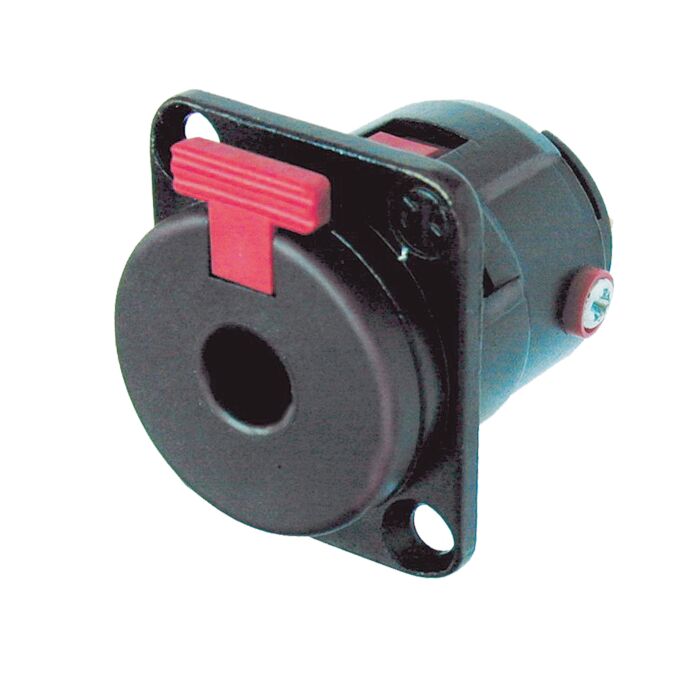

Neutrik NJ3FP6C-B Stereo or Balanced TRS Jack Chassis Panel Mount. Gold Contacts
£10.50
In stock
We have 189 items in stock!
SKU
CHASSIS_NJ3FP6CB
Multibuy discounts calculated at checkout
- Buy 5 for £9.98 each and save 5%
- Buy 10 for £9.45 each and save 10%
- Buy 15 for £8.93 each and save 15%
- Buy 20 for £8.40 each and save 20%
The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab. Standard D size front panel appearance. Selectable grounding options.
The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab. Standard D size front panel appearance. Selectable grounding options.
Locking 1/4" phone jack, D-size shell, black metal housing and gold contacts
Features & Benefits
- Securely locking chassis jack
- Mates with all mono and stereo plugs specified acc. EIA RS-453 (A-gauge)
- Selectable grounding options: standard isolated, to get a sleeve/panel connection red isolator on lateral screw must be removed
- Dimensionally compatible with D Series (31 x 26 mm)
- Solder terminals
- Title - NJ3FP6C-B
- Connection Type - Jack
- Gender - female
Electrical
- Contact resistance - < 6 mΩ (initial)
- Dielectric strength - 1 kVdc
- Insulation resistance - ≥ 1 GΩ @ 500 V dc
- Rated current per contact - 10 A
Mechanical
- Insertion force - < 20 N
- Withdrawal force - < 20 N
- Lifetime - > 10000 mating cycles
- Locking force - > 80 N
- Wiresize - 1 mm²
- Wiresize - 18 AWG
- Wiring - Solder contacts
- Locking device - Latch lock
- Mounting direction - Front mounting
- Chassis shape - D
Material
- Contact plating - 0.2 µm Au
- Contacts - Brass (CuZn37) (Ground)
- Insert - Polyamide (PA 6.6 30 % GR)
- Shell- Zinc diecast (ZnAl4Cu1)
- Shell plating - Black
- Strain relief - Polyacetal (POM)
Environmental
- Standard compliance - EIA RS 453, IEC 60603-11
- Solderability - Complies with IEC 68-2-20
- Temperature range - -25 °C to +70 °C
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Panel Mount - Solder |
| Series Range Name | Locking Jacks |
| Contact Material | Gold Plated |
| Number of Contacts | 3 Pole |
| Pack Quantity | Pack of 1 |
| Manufacturer URL | Download Data Sheet |
| Data Sheet URL | Download Data Sheet |
