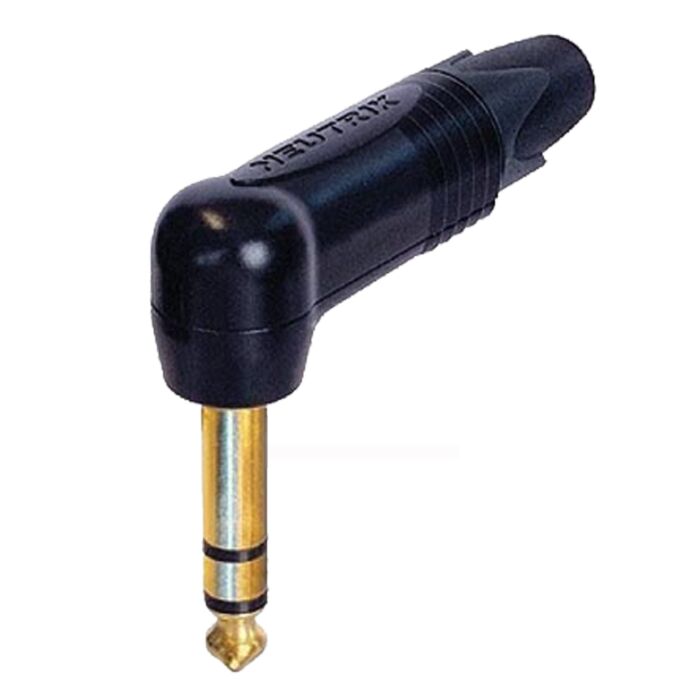

Neutrik NP3RX-B Gold Quarter Right Angle TRS Jack Connector

Neutrik NP3RX-B

Stereo/balanced ¼’’ jack connector, 3 pole, Male Right-Angle, Gold Contacts, Black Chromium Housing

Neutriks gold plated right angle ¼ inch stereo jack, ideal for applications where space is at a premium. This connector comprises of a glossy black die cast metal shell to match its black boot and a precise one piece machined tip, it not only sounds great but looks sleek and stylish too. The tough plastic boot and incredibly robust chuck type strain relief make this connector very hard wearing. It delivers a rounded and warm tone. Ideal for use with guitars and other stereo/balanced instruments

The Gold Contacts offer superior durability against silver

3 Pole relates to the amount of carrier signals inside the cable/connector assembly, in this case three. Two signal carriers and a ground. This can be used in a balanced or stereo assembly. Making it Ideal for ‘Y’ cables and all balanced audio applications

Tech Specs

Electrical

• Contact resistance - depends on mating connector mΩ
• Dielectric strength - 1 kVdc
• Insulation resistance - > 2 GΩ (initial)
• Insulation resistance - ≥ 1 GΩ (after damp heat test)
• Rated current per contact - depends on mating connector A
• Rated voltage - 50 V

Material

• Bushing - Polyacetal (POM) + PU
• Contact plating – 0.2 µm Au
• Contacts - Brass (CuZn39Pb3)
• Insert - Polyamide (PA 6.6 30 % GR)
• Shell - Zinc diecast (ZnAl4Cu1)
• Shell plating – Black Chromium
• Strain relief - Polyacetal (POM)
