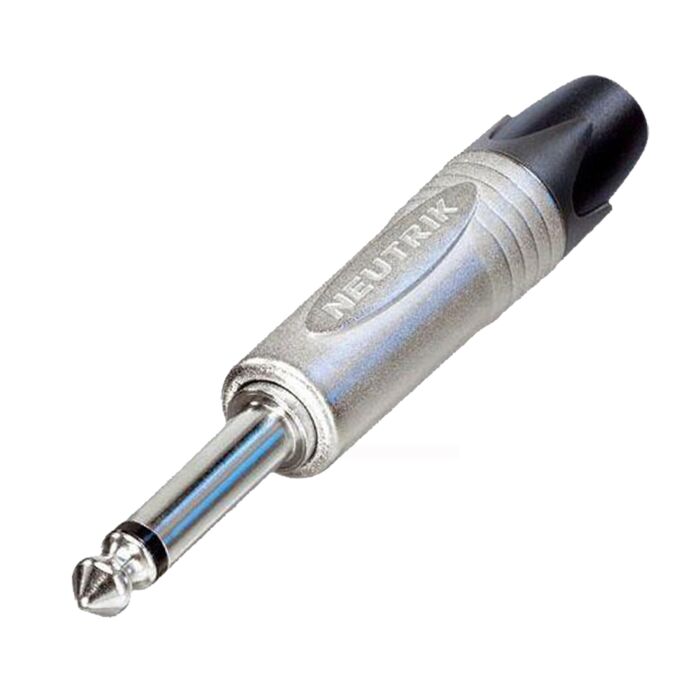

Neutrik NP2X Silver 1/4 Inch Mono Jack Plug Connector

£2.84
In stock
We have 913 items in stock!
SKU
JACKS_NP2X
  • Buy 10 for £2.70 each and save 5%
  • Buy 20 for £2.56 each and save 10%
  • Buy 50 for £2.41 each and save 15%
  • Buy 100 for £2.27 each and save 20%

Mono Instrument ¼” Jack Connector, 2 Pole, Male, Nickel Contacts, Nickel Housing

Neutrik NP2X­­­


Mono Instrument ¼” Jack Connector, 2 Pole, Male, Nickel Contacts, Nickel Housing



Neutriks superior build quality is evident in this straight ¼ inch jack connector. Comprising of a solid die cast metal casing and boasting a precise one piece machined tip. The tough plastic boot and incredibly robust chuck type strain relief make this connector very hard wearing. This classic looking connector will give your sound a bright and lively tone. Ideal for use with guitars and other mono/unbalanced instruments



The Nickel Contacts offer sound conductivity and durability



2 Pole relates to the amount of carrier signals inside the cable/connector assembly, in this case two. The first carrier signal is the information signal and the second is the ground. This can be used to create an unbalanced or mono cable, making it ideal for use with guitars and instruments. It can still be used in balanced sockets but the benefits of balanced audio will not be achieved



Tech Specs



Electrical

Contact resistance - depends on mating connector mΩ

Dielectric strength - 1 kVdc

Insulation resistance - > 2 GΩ (initial)

Insulation resistance - ≥ 1 GΩ (after damp heat test)

Rated current per contact - depends on mating connector A

Rated voltage - 50 V



Material

Bushing - Polyacetal (POM) + PU

Contact plating - 2 µm Ni (Su)

Contacts - Brass (CuZn39Pb3)

Insert - Polyamide (PA 6.6 30 % GR)

Shell - Zinc diecast (ZnAl4Cu1)

Shell plating - Nickel

Strain relief - Polyacetal (POM)

More Information
Connector Type TS Mono Jack
Manufacturer Neutrik
Metal Type.... Silver Plated
