3.5mm Neutrik NTP3RC-B Gold Stereo Angled Mini Jack Connector

Neutrik NTP3RC-B Mini Jack

Stereo/Balanced, 3.5mm Mini Jack, 3 Pole, Male, Gold Contacts, Black Chromium Shell

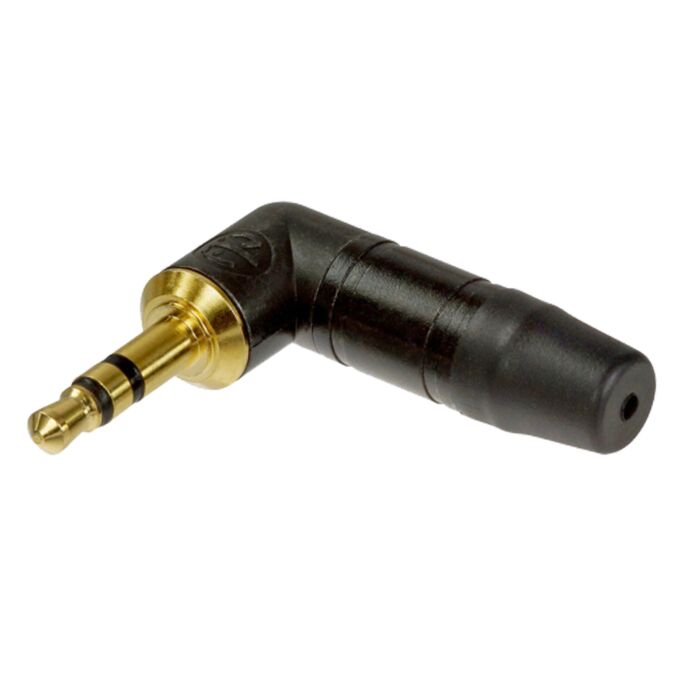

A high quality right angled Neutrik 3 pole, 3.5 mm Mini Jack. The only jack plug of its kind with the unique Neutrik chuck type strain relief for secure cable retention. It accepts cables from 2.0 to 4.5 mm. The all metal housing makes this connector robust and reliable

The Gold Contacts offer superior durability against silver

3 Pole relates to the amount of carrier signals inside the cable/connector assembly, in this case three. This is a balanced/stereo connector. Two signal carriers and a ground

Tech Specs

Electrical

• Contact resistance - depends on mating connector mΩ
• Dielectric strength - 1 kVdc
• Insulation resistance - > 2 GΩ (initial)
• Insulation resistance - ≥ 1 GΩ (after damp heat test)
• Rated current per contact - ≤ 15 A

Materiel

• Bushing - Brass (CuZn39Pb3) + PU, black Cr
• Contact plating - 0.2 µm Au
• Contacts - Brass (CuZn39Pb3)
• Insert - Polyamide (PA 6.6 15 % GR)
• Shell - Zinc diecast (ZnAl4Cu1)
• Shell plating - Black chromium
• Strain relief - Polyacetal (POM)
