Van Damme Ambicore Hybrid Mains & Signal Cable. (1 Pair DMX. 3 Core Power)
Ambicore range is a hybrid multicore with an AES/EBU screened & jacketed pair combined with 1mm, 1.5mm or 2.5mm jacketed power cables. Very flexible and specified for dynamic use this cable range provides an elegant solution to the problem of integrated signal and power distribution. Priced per meter. Example; order a quantity of 10 to receive 1x10m length of cable
Ambicore range is a hybrid multicore with an AES/EBU screened & jacketed pair combined with 1mm, 1.5mm or 2.5mm jacketed power cables. Very flexible and specified for dynamic use this cable range provides an elegant solution to the problem of integrated signal and power distribution. Priced per meter. Example; order a quantity of 10 to receive 1x10m length of cable
Ambicore Power and Signal Tour Grade hybrid multicore

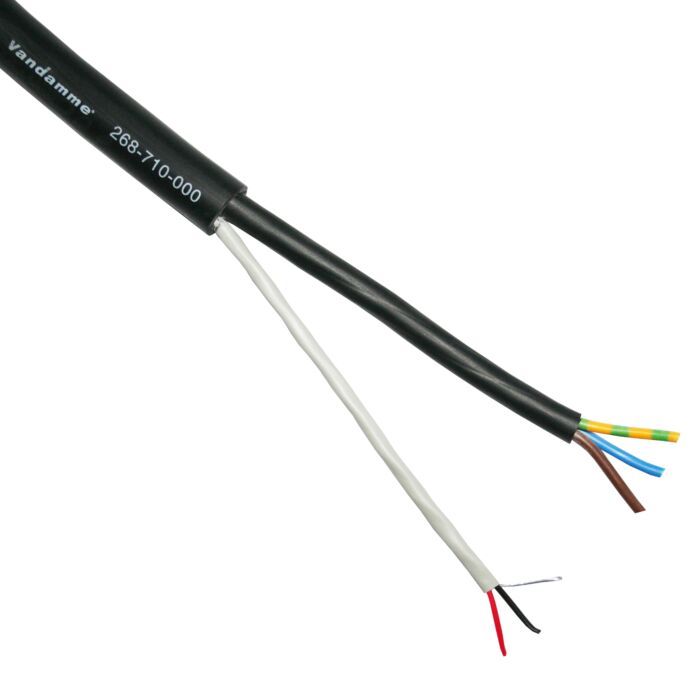

The Van Damme Ambicore range is a hybrid multicore with an AES/EBU screened & jacketed pair combined with 1mm, 1.5mm or 2.5mm jacketed power cables. Very flexible and specified for dynamic use this cable range provides an elegant solution to the problem of integrated signal and power distribution.
Applications
• Self powered speakers from studio monitors to public address systems
• Power and DMX512 for stand alone light fittings
• Interfacing 2 track AES/EBU recorders with existing systems
• Any application requiring balanced analogue or AES digital audio, RS422/485 or DMX512 control with a power feed
Application notes
• AES/EBU twisted pair suitable for analogue balanced and digital audio
• Suitable for any 100 to 110 Ohm balanced data application such as RS422, RS485, DMX512 and timecode
• Power elements compliant with HO5VV-F harmonised standard
• Ultra pure oxygen free copper for outstanding sonic integ
268-710-000 - 10 Amp
3x1.00mm2
Overall diameter - 14.2mm ±0.15
Bend radius - 10 x overall diameter
268-715-000 - 15 Amp
3x1.50mm2
Overall diameter - 15.5mm ±0.15
Bend radius - 10 x overall diameter
268-725-000 - 20 Amp
2.50mm2
Overall diameter - 17.3mm ±0.15
Bend radius - 10 x overall diameter
AES/EBU Twisted Pair Spec
Conductor
Material - Bare ultra pure oxygen free copper wire
Stranding - 7 x 0.20mm (0.22mm2)
AWG 24/7
Insulation
Material - Foam skin polyolefin
Average thickness - 0.20mm
Diameter - 1.40mm ±0.10
Colour coding - Red/black
Screen
Type - 24μm Aluminium/polyester foil >150% coverage
Drain wire - 7 x 0.20mm (0.22mm2)
AWG 24/7
Jacket
Material - PVC composite Pebble grey RAL 7032
Average thickness - 0.50mm
Overall diameter - 3.90mm ±0.15
Physical properties unaged Jacket (at 60ºC)
Tensile strength - >12.5N/mm2
Elongation - >100%
Heat shock test - 150 ºC x 1 hour - no cracks
Electrical characteristics
Resistance
Conductor - Ohm/Km <90
Shield Ohm/Km <70
Insulation M Ohm/Km >5000
Capacitance
Core to core pF/m - 50 nominal
Core to shield - 100 nominal
Impedance
110 Ohms ±20%
Overall jacket
Flexible PVC composite black Flexible PVC composite black Flexible PVC composite black
