Mogami 2947 Dual Coaxial. 75 ohms. Thin Black Cable.
As low as
£0.78
In stock
SKU
CABLE.MOGAMI.Twin.2947
Multibuy discounts calculated at checkout

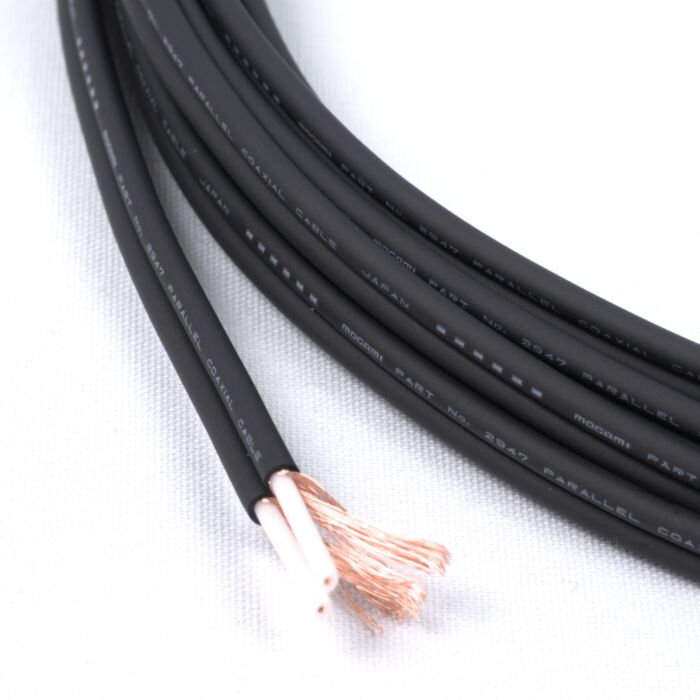

Mogami 2947 Dual Coaxial. 75 ohms. Thin Black Cable.
W2947 parallel 75Ω coaxial cable was developed to satisfy a contradicted requirements of strict 75Ω low-loss performance in a small package which fits S-video mini-din connectors for separate Y/C signals.
CABLE SPECIFICATIONS
| Configuration |  W2947 |
|
| Core Configuration | 2×75Ω Coax. | |
| Conductor Size | 0.126mm² (#27AWG) | |
| Overall Shield | None | |
| Jacket | Ov. Dia.(mm) | 2×3.0Ø (0.118") |
| Material | Flexible PVC | |
| Color | Black | |
| Roll Sizes | 153m / 305m (500Ft / 1,000Ft) | |
| Weight per 153m (500Ft) Roll | 4kg | |
ELECTRICAL & MECHANICAL CHARACTERISTICS
| DC Resistance at 20°C | Inner Cond. | 0.15Ω/m(0.046Ω/Ft) | |
| Shield | 0.04Ω/m(0.012Ω/Ft) | ||
| Capacitance at 1kHz, 20°C | 59pF/m(18.0pF/Ft) | ||
| Characteristic Imperdance at 10MHz | 75Ω±5% | ||
| Attenuation (10MHz) | 0.061dB/m (0.019db/Ft) |
||
| Phase Constant (10MHz) | 0.28rad/m | ||
| Electromagnetic Noise* | 0.1mV Max. | ||
| Voltage Breakdown | Must withstand at DC 500V/15sec. | ||
| Insulation Resistance | 10000 MΩ × m Min. at DC 500V, 20°C | ||
| Flex Life* | 24,000 cycles | ||
| Tensile Strength | 392N | ||
| Emigration | Non-emigrant to ABS resin | ||
| Applicable Temperature | -20°C‾ +70°C(-4°F‾ +158žF) | ||
| Standard | UL Subject 758 AWM 2552 VW-1 30V 60&°C 30V, -F- | ||
Attenuation : 1 dB = 0.1151 neper (1 neper = 8.686 dB)
* Using standard testing method of Mogami Wire & Cable Corp.
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Cable Type | Analogue Audio - Balanced |
| Cable Brand | Mogami |
