Speaker Splitter Cable with Serial Or Parallel Wiring

Series Or Parallel?

!IF YOU ARE UNSURE WHICH OPTION TO CHOOSE, PLEASE GET IN CONTACT!

Wiring guitar speakers in series or parallel changes the total electrical resistance (impedance) that your amplifier "sees." Choosing the correct wiring ensures your amp operates safely and delivers maximum power without damaging its output transformer.

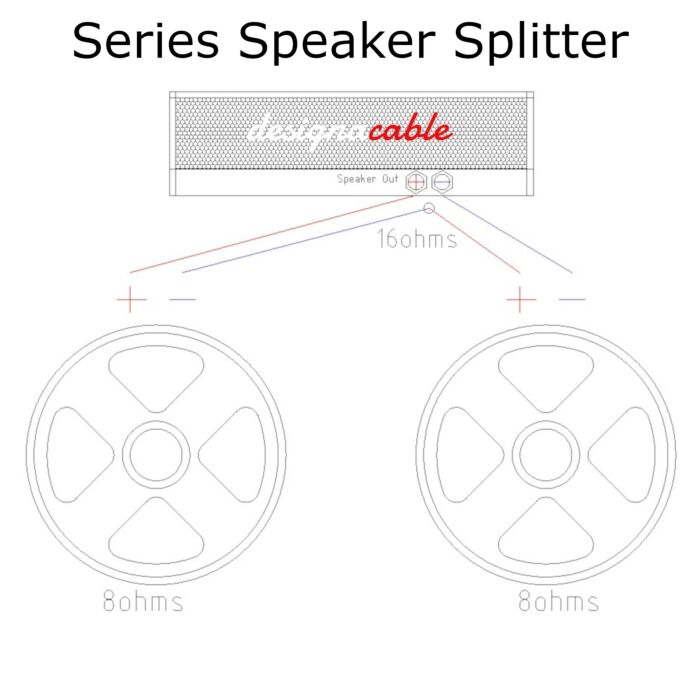

Series Wiring

In a series circuit, speakers are connected in a single continuous loop. The electrical current passes through one speaker and then the next.

Example: Two 8-ohm speakers in series = 16 ohms.

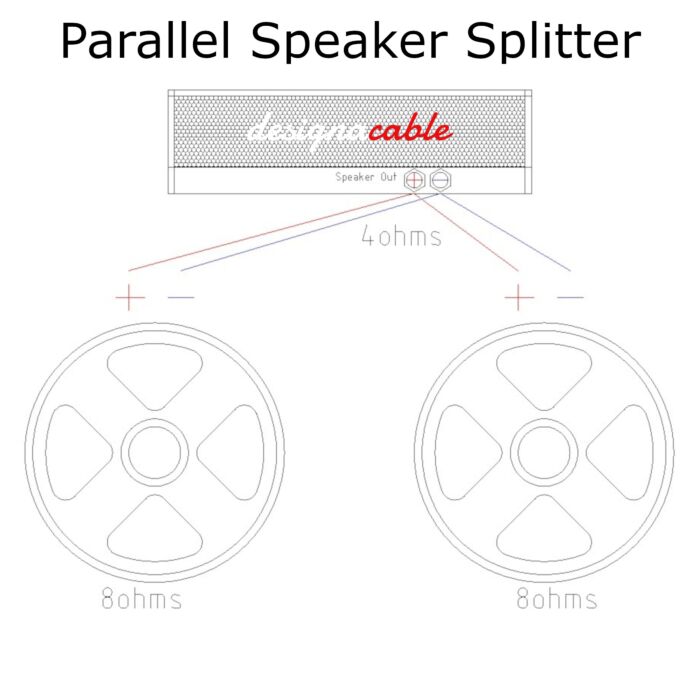

Parallel Wiring

In a parallel circuit, each speaker is connected directly to the amplifier’s output terminals, creating multiple paths for the current.

Example: Two 8-ohm speakers in parallel = 4 ohms.

Cable

Van Damme Black Series Tour Grade Speaker Cable offers a comprehensive conductor size and core count to accommodate almost all potential speaker signals. From 2 core 1.5mm through 8 core 4mm to 18 core 2.5mm the ultra pure copper conductors, cutting edge PVC compounds and dynamic use focused construction provide accurate signal transmission, toughness and flexibility.

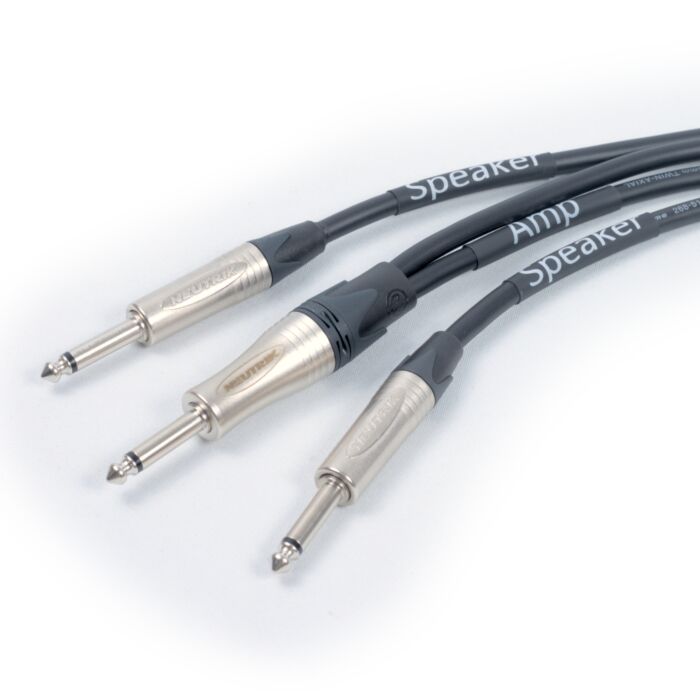

Connectors

NP2X and NP2XL -1/4" professional phone plug, 2 pole, nickel contacts, nickel shell

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch).

The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.

The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.
