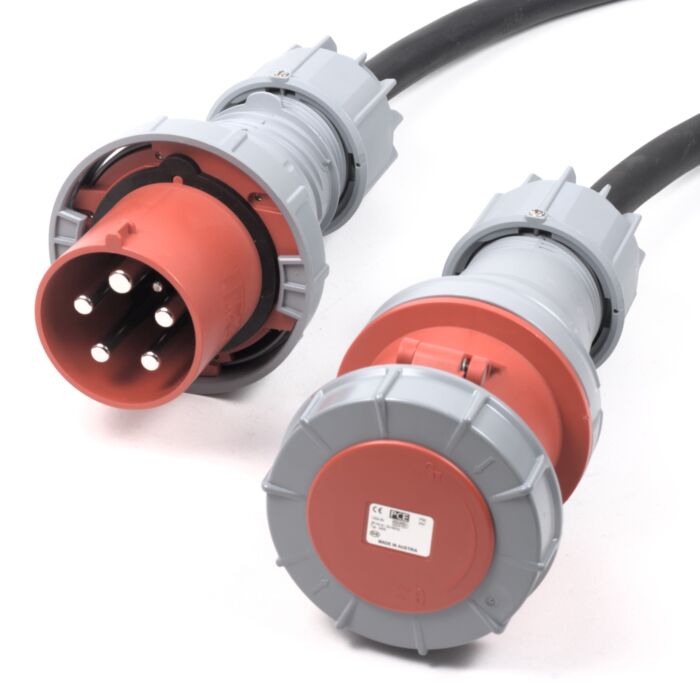

125amp Red 3 PHASE Events CEEform Power Cable. (5x35mm) 3P+N+E 400V. TITANEX H07RN-F

This is an industrial tough 125 amp max 400v 3 Phase Ceeform lead is ideal for a range of situations including; theatre, broadcast, industrial applications, On-Site, Event Power + many more. When mated this lead is rated as IP67 so is “Dust Tight”, and capable of temporary submersion in water.

Connectors

CEE-plug and CEE-socket

• 125A 5p 6h IP67 POWER TWIST
• housing material: PA6
• rated current: 125A
• number of poles: 5 (3P+N+PE)
• clock-position: 6h
• rated voltage/frequency: 200/346V~ - 240/415V~ / 50+60Hz
• contacts: brass nickel plated, with pilot pin
• connection technology: frame terminals with screws
• IP protection class: IP66/IP67
• Cable Overall Diameter: Min/Max 35/45mm

Cable

TITANEX® H07RN-F cables with EPR rubber insulation and rubber sheathing offer outstanding mechanical properties to meet your most varied requirements. No matter what the installation conditions are, whether indoors or outdoors, in cramped and hazardous environments or in the presence of oils and chemicals, TITANEX combines strength and flexibility to meet all your requirements.

• Very high flexibility
• Very high crush resistance
• Good resistance to chemicals, oils and vibrations
• Core temperature : 90°C
• Operating Voltage : 450/750V mobile, 0.6/1kV fixed. TITANEX H07RN-F cables have been designed to limit the generation and spread of fire and smoke.
• Reaction to fire : Eca (according to EN 50575:2014+A1:2016)
• Flame retardant (IEC 60332-1, C2)
