12G Angled BNC for Belden 1505A
£15.91
Available for Pre-Order
SKU
BNC_1505A.RA.12G
Multibuy discounts calculated at checkout
- Buy 5 for £15.11 each and save 5%
- Buy 10 for £14.32 each and save 10%
- Buy 15 for £13.52 each and save 15%
- Buy 20 for £12.73 each and save 20%

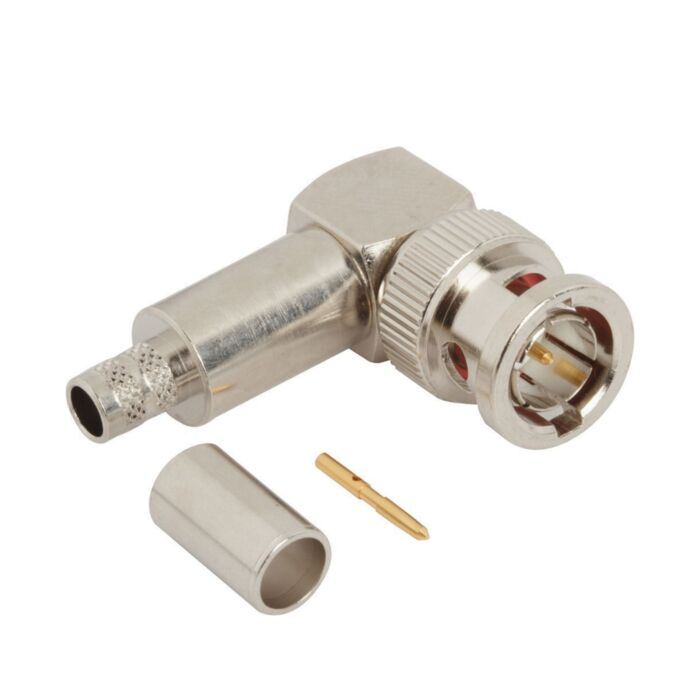

BNC Right Angle Crimp Plug Belden 1505A AT&T 734 75 Ohm
Product Specifications
Body Finish - Nickel
Body Material - Brass
Cable Type (Terminates to) - Belden 1426A, Belden 1505A, Belden 4505R, Belden 8212, Belden 8241F, Belden 9100, Belden 9259, AT&T 734, AT&T 734A
Contact Finish - Gold
Contact Material - Phosphor Bronze
Coupling Mechanism - Bayonet
Crimp Tool - CTL-15
Export Control Classification Number - EAR99
Frequency (Max GHz) - 3
Gender - Plug
Impedance (Ohms) - 75
Insulator Material - PTFE
Non Magnetic No
Orientation - Right Angle
Ports - 1 (Single Port)
Size Category - Miniature
Temp (Max Degrees Celsius) - 85
Temp (Min Degrees Celsius) - 40
Termination Style - Cable - Crimp
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Cable Mount - Crimp |
| Series Range Name | CrimpType 75ohm |
| Contact Material | Gold Plated |
| Number of Contacts | 2 Pole |
| Pack Quantity | Pack of 1 |
| Manufacturer URL | Download Data Sheet |
