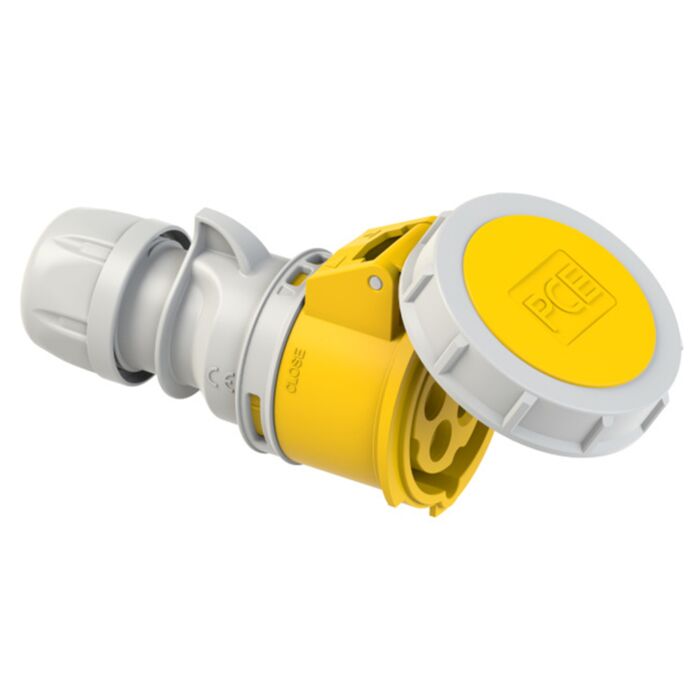

16amp 110v IP67 Yellow Motor Control Cable Mount Female Socket. 4 Pole PCE (2142-4)

PCE is specialized in the production of industrial plugs, sockets, and power distribution boxes. During the past few years, the company has gone through a phase of rapid development and is now one of the world’s leading manufacturers of CEE IEC60309 plugs, sockets and accessories.

• housing material: PA6
• rated current: 16A
• number of poles: 4 (3P+PE)
• clock position: 4h
• rated voltage/frequency: 100-130V~ / 50+60Hz
• contacts: brass
• connection technology: screw terminals
• IP protection class: IP66/IP67

PCE plugs and sockets are produced from POLYAMIDE 6. The main characteristics of this material are:

• excellent impact resistance combined with high rigidity and solidity,
• high thermal stability (self-extinguishing),
• very good insulating qualities,
• high disruptive strength,
• high abrasion resistance,
• high weathering resistance,
• very good chemical resistance to various chemicals,
• free from cadmium and halogen (fluorine, chlorine, bromine, jodine, astatine)
• conform to RoHS-directiv 2011/65/EU
