MOGAMI 25 Pin D Sub to Neutrik TRS Jacks Cable. Serial db-25 Multicore Snake Tascam & Yamaha
As low as
£102.73
In stock
SKU
25DBKMACH-08MOGAMI-8xNP3XB

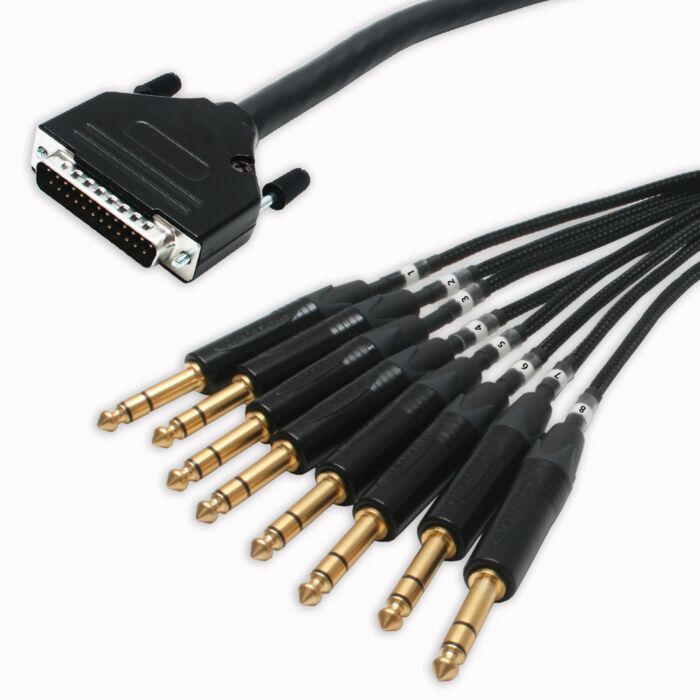

25 pin D-Sub to TRS Jack cables made using high specification Mogami 8 pair multicore cable, precision ‘Machined’ male dsub connectors and Neutrik Gold Plated NP3X-B TRS Jacks.
25 pin D-Sub to TRS Jack cables made using high specification Mogami 8 pair multicore cable, precision ‘Machined’ male dsub connectors and Neutrik Gold Plated NP3X-B TRS Jacks.
25 pin D-Sub to TRS Jack cables made using high specification Mogami 8 pair multicore cable, precision ‘Machined’ male dsub connectors and Neutrik Gold Plated NP3X-B TRS Jacks.
Each tail is braided in a black expandable braid and numbered 1-8 for easy identification.
Mogami multicore cables are designed for the highest level of audio performance and feature superb electrical and mechanical characteristics while remaining compact, superflexible and easy to use.
These are the Rolls-Royce of D-Sub Interconnects.
- Machined Male 25 Pin Sub D Connector. Standard Density.
- Black Metal 25 Pin Sub D Hood. Black Plastic Cap Jackscrews.
- Flexible Mogami 8 pair multicore cable.
- 8 Balanced Channels.
- Wired to the Tascam Analogue Standard.
- Manufactured using 4% silver solder
- Terminated using Neutriks Gold Plated TRS Jacks
| Cable Capacitance | 130pF/m(40pF/Ft) |
|---|---|
| Cable Resistance | 0.13Ω/m(0.040Ω/Ft) |
| Cable Conductor | 30/0.08A (0.15mm²) #26AWG |
| Cable Jacket | (Covering) 2.8Ø Flexible PVC |
| Brand | Mogami |
| Application | Tour Grade |
| Terminated with | 25Pin dSub to TRS Jack |
| Metal Type | Gold Plated |
