TA3 Style 3-Pin Female to Female Mini XLR Cable | FOX TWO Mini & REAN

Need to connect two pieces of audio equipment fitted with male 3-pin Mini XLR connections? Finding the right cable can be difficult when most standard leads use a Female to Male configuration.

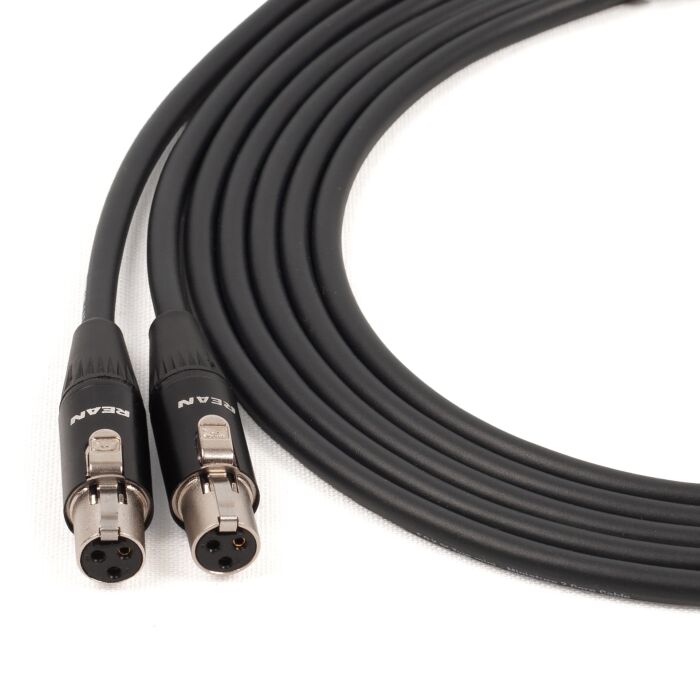

This 3-pin Female to Female Mini XLR cable provides a compact, screened connection between compatible TA3-style audio devices. Ideal for specialist audio interconnections, custom studio setups and equipment patching where female connectors are required at both ends.

Combining slim, flexible FOX TWO Mini cable with matching black REAN connectors, the finished assembly is lightweight, easy to route and well suited to installations where space is limited.

Each cable is hand-built and individually electrically tested in our UK workshop.

Cable Components

FOX TWO Mini | Miniature Balanced Audio Cable

FOX TWO Mini is a lightweight, flexible two-core screened cable with an overall diameter of just 4.1mm.

Its miniature construction helps reduce cable bulk around closely positioned equipment, while silver-plated copper conductors and braided tinned-copper screening make it suitable for balanced analogue audio connections.

• 2 × 28 AWG silver-plated copper conductors
• Braided tinned-copper screening
• Flexible black PVC outer jacket
• 4.1mm nominal overall diameter
• Fibre fillers designed to reduce handling noise
• Suitable for compact audio installations and equipment patching

REAN RT Series | 3-Pin Female Mini XLR Connectors

This cable features two black REAN RT3FC-B Female Mini XLR connectors, creating a matching Female to Female assembly for compatible 3-pin Mini XLR equipment.

Each connector features a rugged metal housing, gold-plated contacts and a secure locking mechanism to help maintain a reliable connection during use.

The compact design is particularly useful for miniature audio equipment and closely arranged installations where connector size and cable flexibility are important.

Connector Features:

• Matching 3-pin Female Mini XLR connectors
• TA3-style miniature XLR format
• Black metal connector housings
• Gold-plated contacts
• Secure push-button locking mechanism
• Integrated cable strain relief
• Designed for cables measuring 2.0–4.5mm in diameter
