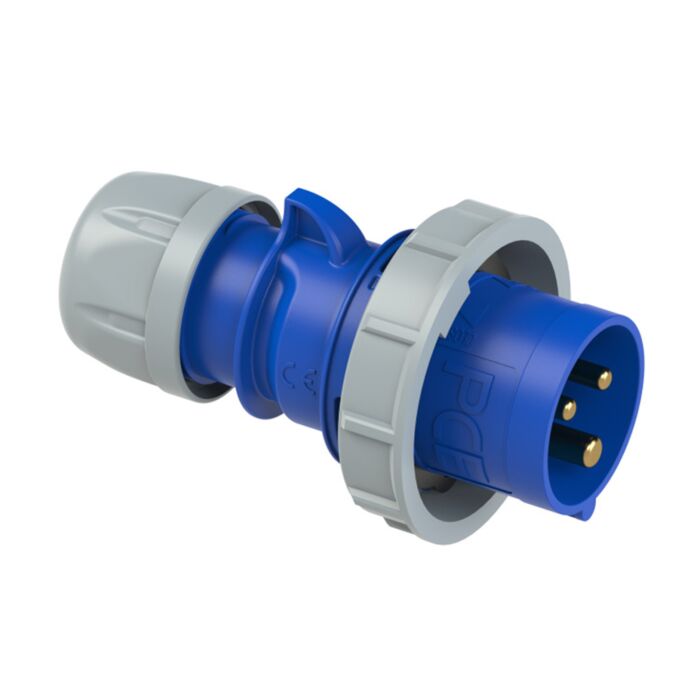

32amp IP67 Rated 240v 2P+E Ceeform Cable Mount Blue Male Plug. 3 Pole. PCE (0232-6)

The PCE SHARK series is state-of-the-art in power distribution: extremely robust in design, fine-mechanically and ergonomically designed and is available in 16 and 32 Amp with 3, 4 and 5 pole versions. The PCE Shark series is designed to meet all application requirements.

PCE is specialized in the production of industrial plugs, sockets, and power distribution boxes. During the past few years, the company has gone through a phase of rapid development and is now one of the world’s leading manufacturers of CEE IEC60309 plugs, sockets and accessories.

• housing material: PA6
• rated current: 32A
• number of poles: 3 (2P+PE)
• clock position: 6h
• rated voltage/frequency: 200-250V~ / 50+60Hz
• contacts: brass
• connection technology: screw terminals
• IP protection class: IP66/IP67

PCE plugs and sockets are produced from POLYAMIDE 6. The main characteristics of this material are:

• excellent impact resistance combined with high rigidity and solidity,
• high thermal stability (self-extinguishing),
• very good insulating qualities,
• high disruptive strength,
• high abrasion resistance,
• high weathering resistance,
• very good chemical resistance to various chemicals,
• free from cadmium and halogen (fluorine, chlorine, bromine, jodine, astatine)
• conform to RoHS-directiv 2011/65/EU
