7 Pin XLR Tube Microphone Cable. Neutik. Sommer SC-Octave Mic lead

Our SC-OCTAVE TUBE has been especially developed for the connection of tube microphones. It has a total of 7 wires, two for power input and the remaining ones for parameter-variable directivity, sensing (measuring), heating, and power for the tube capsule.
Our SC-OCTAVE TUBE has been especially developed for the connection of tube microphones. It has a total of 7 wires, two for power input and the remaining ones for parameter-variable directivity, sensing (measuring), heating, and power for the tube capsule.
The Sommer Octave cable used to manufacture these leads is a cable specifically designed for use with Tube and Valve mic’s. Two of the 7 cores are a heavier gauge of copper that supply power to the heater. Here is what SOMMER say......
Our SC-OCTAVE TUBE has been especially developed for the connection of tube microphones. It has a total of 7 wires, two for power input and the remaining ones for parameter-variable directivity, sensing (measuring), heating, and power for the tube capsule. These five wires are made up of 72 superfine individual 0.05 mm wires and guarantee linear transmission and high flexibility. With 100 % opaque shielding (copper spiral + AL-fleece) the SC-OCTAVE TUBE is protected against all kinds of interference. It is ideal for the connection of Neumann, BPM, Schoeps + many more.
THE ADVANTAGES
Audio and power signal in one cable
100 % interference protection
High quality, linear transmission
Highly flexible
Sommer SC-OCTAVE TUBE 7 Core Cable

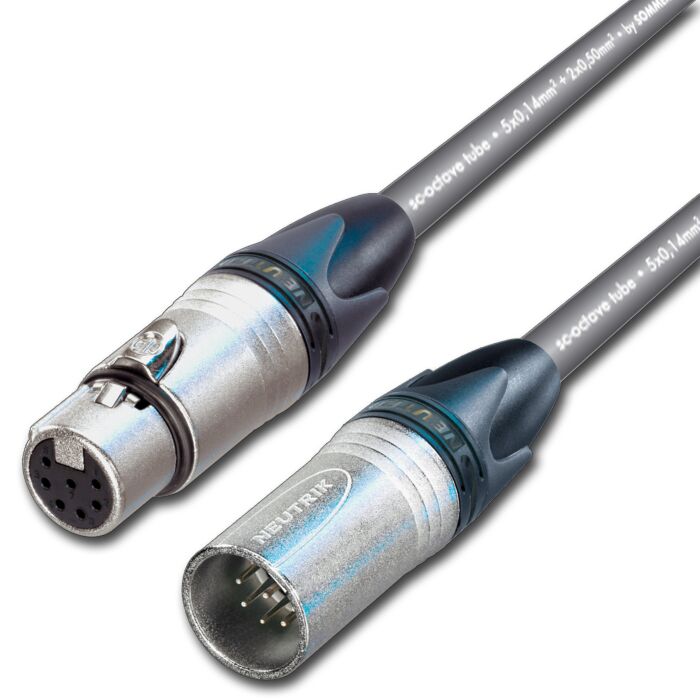

Terminated with Neutrik NC7MXX and NC7FXX 7-pin Connectors
Manufactured using 4% silver solder
Delivery Speed | Next Day Delivery if 'In Stock' |
---|---|
Cable Capacitance | cond./cond. per 1 m - 69 pF |
Cable Resistance | per 1 km - (audio) 140 Ohm |
Cable Conductor | 5 x 0,14 mm2 |
Cable Screening | - |
Cable Jacket | PVC 6,5 mm |
Overall Diameter | - |
Cable Brand | Sommer |
Application | Tour & Studio Grade |
Contact Material | Silver Plated |
Number of Contacts | 7 Pole |
