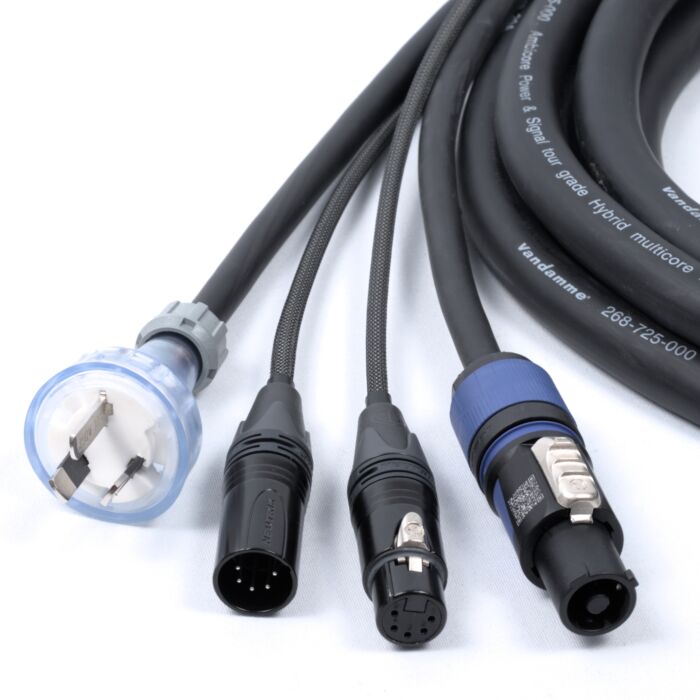

Australian Plug to PowerCon, DMX Hybrid Power and Signal Cable.

Available in 40 different configurations, using UK US EU AU IEC PowerCon True1 plugs and sockets. These leads also come in three different power ratings, 10amp 15amp and 20amp max power consumption. And 2 different signal configurations Audio 3pin XLR or DMX 5pin XLR.

NEUTRIK CONNECTORS

Easy Identification between cable types, sliver for audio and Black for DMX.

NC3FXX / NC3MXX (Audio Leads)

3 pole female and male cable connector with Nickel housing and silver contacts.

NC5FXX-BAG / NC5MXX-BAG (DMX Leads)

5 pole female and male cable connector with black metal housing and silver contacts.

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

VAN DAMME AMBICORE

Applications

• Self-powered speakers from studio monitors to public address systems
• Power and DMX512 for stand-alone light fixtures
• Interfacing 2 track AES/EBU recorders with existing systems
• Any application requiring balanced analogue or AES digital audio, RS422/485 or DMX512 control with
• a power feed

Application Notes

• AES/EBU twisted pair suitable for analogue balanced and digital audio
• Suitable for any 100 to 110 Ohm balanced data application such as RS422, RS485, DMX512 and timecode
• Power elements compliant with HO5VV-F harmonised standard
• Ultra-pure oxygen free copper for outstanding sonic integrity

Overall Diameter

• 268-710-000 - 10A - 14.20 mm Diameter,
• 268-715-000 - 15A - 15.50 mm Diameter,
• 268-725-000 - 20A - 17.30 mm Diameter,
