Balanced Female XLR Split into Dual (x2) Balanced Female TRS Jack Sockets
As low as
£30.94
In stock
SKU
NC3FXX-SOPCOK-X2NJ3FC6C

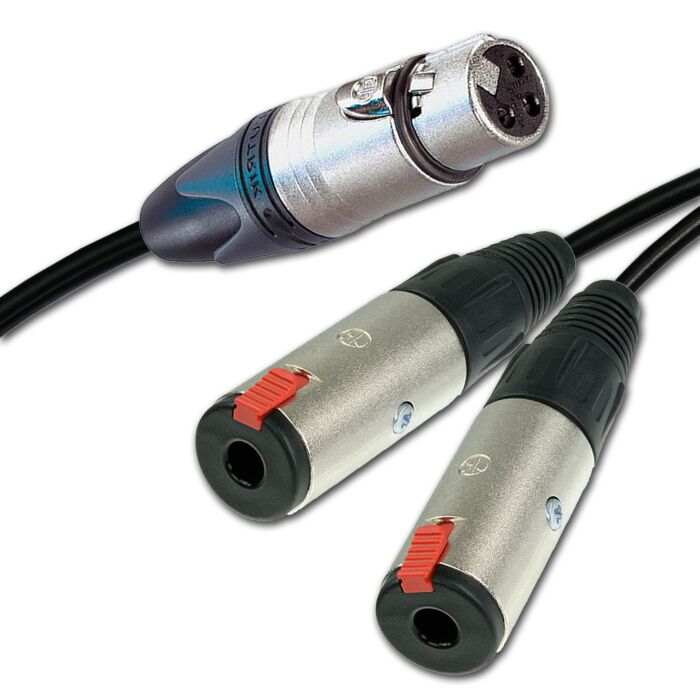

A cable that splits a balanced Female XLR into 2x identical balanced female TRS Jack sockets. For example; these can be used to split the output of a microphone into 2 extension sockets. Please note that this is a balanced lead, not stereo.
A cable that splits a balanced Female XLR into 2x identical balanced female TRS Jack sockets. For example; these can be used to split the output of a microphone into 2 extension sockets. Please note that this is a balanced lead, not stereo.
- 2 x Tour Grade Neutrik NJ3FC6C Silver Female 1/4" TRS Jack Sockets
- Tour Grade Neutrik NC3FXX Female Silver XLR
- Sommer Peacock twin shotgun cable
- Cable split at approximately 15cm (can be easily modified)
- Manufactured using 4% silver solder
| Cable Capacitance | Capac. cond./shield. per 1 m (AES/EBU, DMX): 125 pF |
|---|---|
| Cable Resistance | Cond. resistance per 1 km (AES/EBU, DMX): 90 Ω |
| Cable Conductor | AWG 24. Shielding: Copper spiral sleeve (AES/EBU, DMX): 0,22 mm² |
| Cable Screening | - |
| Cable Jacket | Jacket material: S-PVC. Width: 9.2 mm - Height: 4.5 mm |
| Overall Diameter | - |
| Brand | Sommer |
| Application | Tour & Studio Grade |
| Terminated with | Female XLR to TRS Jack |
| Metal Type | Silver Plated |
| Number of Contacts (pins) | 3 Pole |
