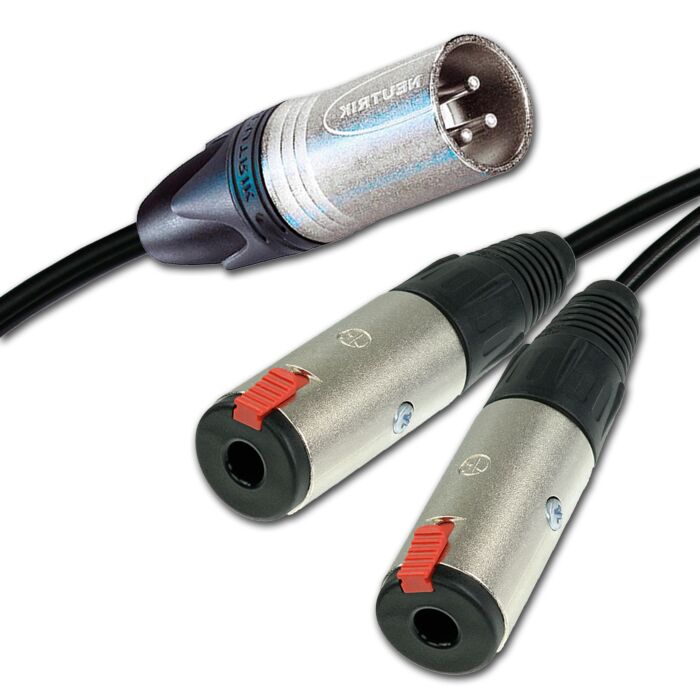

Balanced Neutrik Male XLR Split into 2 x Neutrik Balanced Female Jacks, Sommer Peacock Cable

£0.00

Quick Overview

A cable that sums together 2 balanced 1/4" TRS Jack Sockets into one single male XLR. For example; using as a short adapter lead for summing the output of a mixer Left/Right into a single balanced input of a power amp. Please note that this is a balanced lead, not stereo.

Availability: In stock

Check Prime Stock
Ship to: Worldwide
+£1.00

Characters left: 15

* Required Fields

£0.00

Details

This lead allows you to split a balanced signal into two identical balanced signal lines. For example; Splitting the balanced XLR output of a mixing desk into two identical signal lines to serve two separate amplifiers. The major benefit of this cable is that it can be used an extension lead, allowing you to connect two single/independant balanced leads.

The lead comprises of Sommer’s SC Peacock Twin Balanced Cable, a Neutrik Male XLR and Neutrik Silver Female Jacks. All components are industry standard quality and built to last. The internal cable strain relief inside the connectors is Neutrik’s unique ‘Chuck Type’ offering exceptional restraint.

All pairs purchased will be sent marked as ‘RED FOR RIGHT’ & ‘BLACK FOR LEFT’ by using coloured marking rings or boots on the connectors.

  • 2x Tour Grade Neutrik NJ3FC6C Silver 1/4" Female TRS Jack Sockets
  • Tour Grade Neutrik NC3MXX Male Silver XLR
  • Sommer Peacock twin shotgun cable
  • Cable split at approximately 15cm (can be easily modified)
  • Manufactured using 4% silver solder


Additional Information

Prime Link No
Cable Capacitance Capac. cond./shield. per 1 m (AES/EBU, DMX): 125 pF
Cable Resistance Cond. resistance per 1 km (AES/EBU, DMX): 90 Ω
Cable Conductor AWG 24. Shielding: Copper spiral sleeve (AES/EBU, DMX): 0,22 mm²
Cable Jacket Jacket material: S-PVC. Width: 9.2 mm - Height: 4.5 mm
Brand.... Sommer
Application.... Tour & Studio Grade
Terminated with.... Male XLR to TRS Jack
Metal Type.... Silver Plated
Poles 3 Pole
Works with.... Male XLR, TRS Jack
Special Attribute Balanced, Splitter
Multicore Options.... No
Wireless System No
