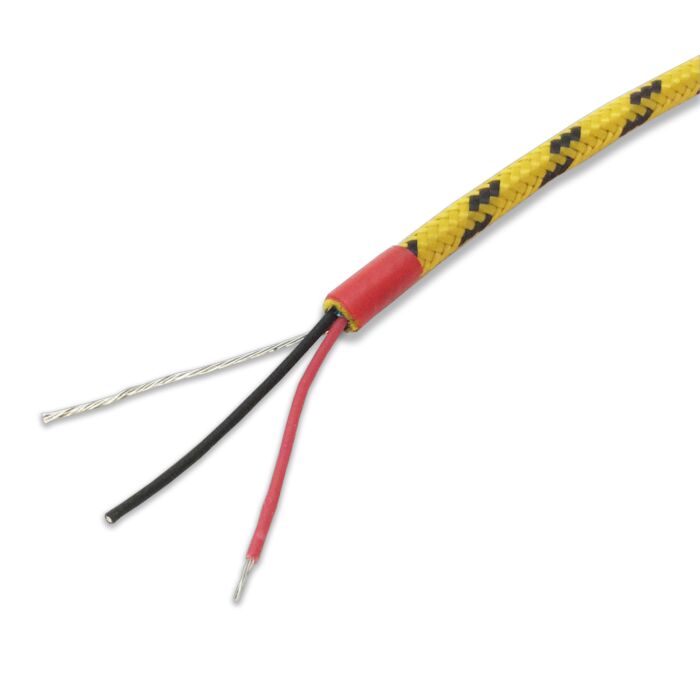

Vintage Braided Belden 1508A Brilliance. 2 Core and Drain Wire. 24awg (4.3mm OD)
As low as
£0.43
In stock
SKU
CABLE.BAL.BEL.1508A.VINTAGE
Multibuy discounts calculated at checkout
A flexible little cable with a low overall diameter, clad in a retro 'Vintage Yellow' polyester braid. This cable works well in the manufacture of cables with miniature connectors including 3.5mm mini jacks and TT bantam Jacks.
A flexible little cable with a low overall diameter, clad in a retro 'Vintage Yellow' polyester braid. This cable works well in the manufacture of cables with miniature connectors including 3.5mm mini jacks and TT bantam Jacks.
Conductor
- # Pairs - 1
- AWG - 24
- Stranding – 7x32
- Conductor Material - TC - Tinned Copper
- Dia. (in.) – .024
- Total Number of Conductors - 2
Insulation
- Insulation Material - PO - Polyolefin
Outer Shield
- Material - Beldfoil® Tape Aluminum Foil-Polyester Tape
- Coverage (%) - 100
- Outer Shield Drain Wire AWG: 24
- Stranding - 7x32
Outer Shield Drain Wire
- AWG - 24
- Stranding - 7x32
- Drain Wire Conductor Material - TC - Tinned Copper
Outer Jacket Material - PVC - Polyvinyl Chloride
- Overall Nominal Diameter - 4.3mm
- Over braid - Vintage Yellow Polyester
Electrical Characteristics (Overall)
- Nom. Characteristic Impedance: (Ohm) 50
- Nom. Capacitance Conductor to Conductor: Capacitance (pF/ft) 31
- Nom. Capacitance Cond. to Other Conductor & Shield: Capacitance (pF/ft) 58
- Nom. Conductor DC Resistance: (Ohm/1000 ft) 23.3
- Max. Operating Voltage - UL: Voltage 300 V RMS
- Max. Recommended Current: Current 1.05 Amps per conductor @ 25°C
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Cable Type | Analogue Audio - Balanced |
| Cable Brand | Belden |
| Cable Conductor | AWG - 24. Stranding – 7x32. Material - TC - Tinned Copper Cable Resistance |
| Cable Resistance | Nom. Characteristic Impedance: (Ohm) 50 |
| Cable Capacitance | Nom. Capacitance Cond. to Other Conductor & Shield: Capacitance (pF/ft) 58 |
| Cable Screening | Beldfoil® Tape, Aluminum Foil-Polyester Tape, coverage 100% + Drain Wire; AWG: 24 Stranding - 7x32 |
| Overall Diameter | 4.5mm |
| Cable Jacket | PVC - Polyvinyl Chloride Overall Diameter (fabric covered) |
