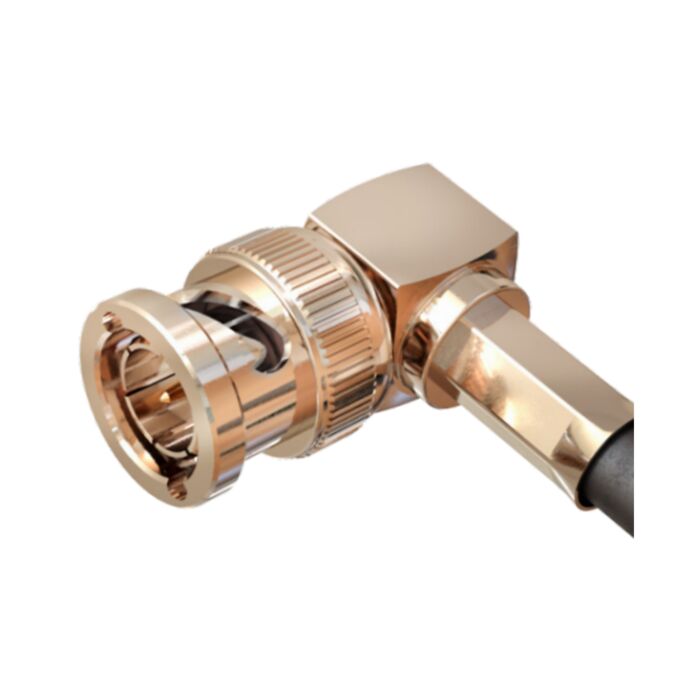

BNC 12G SDI Crimp Right Angle Plug. Nickel Plated. Belden 4855R
£14.74
In stock
We have 1 items in stock!
Only 1 left
SKU
BNC_Angled.4855R.12G.UHD
Multibuy discounts calculated at checkout
- Buy 5 for £14.00 each and save 5%
- Buy 10 for £13.27 each and save 10%
- Buy 15 for £12.53 each and save 15%
- Buy 20 for £11.79 each and save 20%
BNC 12G SDI Crimp Right Angle Plug, Nickel Plated, Gigatronix UHD75-M59 / M59XF, Belden 4855R
Electrical
Dielectric Withstanding
1500 Volts RMS Maximum
Impedance
75 ohms
Interface Frequency
12 GHz
Working Voltage
500 Volts RMS Maximum
Environmental
RoHS Compliant
Yes
Temperature Range
-65 to +165 degrees C
Material
Body
Brass, Nickel Plated
Coupling Nut
Brass, Nickel Plated
Dielectric
PTFE
End Cap
Brass, Nickel Plated
Ferrule
Brass, Nickel Plated
Pin
Brass, Gold Plated
Mechanical
Cable Retention
Equal to breaking strain of cable
Contact Termination
Solder
Durability
500 mating cycles
Fixing Method
Crimp
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Cable Mount - Crimp |
| Contact Material | Gold Plated |
| Number of Contacts | 2 Pole |
| Pack Quantity | Pack of 1 |
