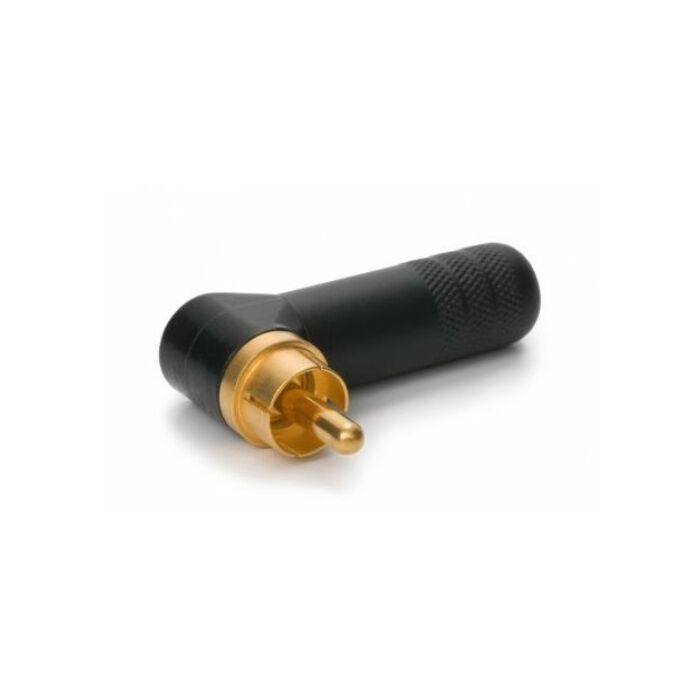

Switchcraft 3502RABAU Angled RCA Plug. Gold Phono Connector

£7.77
In stock
We have 64 items in stock!
SKU
RCA_3502RABAU
  • Buy 10 for £7.38 each and save 5%
  • Buy 20 for £6.99 each and save 10%
  • Buy 50 for £6.60 each and save 15%
  • Buy 100 for £6.22 each and save 20%

Switchcraft’s® right-angle RCA plugs (3502RA) features an easy-to-assemble three piece construction: a handle, insulator and plug assembly. The plug features a solid-pin design and large solder terminals that make termination faster and easier. The reduced profile makes it perfect for use behind equipment where space is at a premium. The larger cable clamp and handle will accommodate a variety of cable sizes. This new RCA plug will save time and space in any application.

Features & Benefits:

  • Solid center conductor
  • High quality appearance
  • Larger cable clamp provides better strain relief for large cables
  • Longer cable clamp for easier plug assembly and more room for solder connection
  • Knurl on the back of handle provides erognomic gripping surface to tighten plug
  • Longer handle for improved gripping surface and easy plug withdrawal from jack
  • 3502RABAU has gold-plated plug finger and black epoxy finished handle



Specifications



Electrical

Contact Resistance (typical *D.O.M.J.): <0.20 ohms

Dielectric Withstand Voltage: 500VAC (minimum)

Insulation Resistance @ 500VDC: 2,000 megohms (minimum)

Insulation Resistance (after MIL-STD-202 Salt Spray):

1,000 megohms (minimum)

Working Voltage: 250VAC, 140VDC

Current Carry @ Working Voltage (typical *D.O.M.J.):

6.0 Amps



Mechanical

Insert/Withdrawal Force: Dependent On Mating Jack

Temperature Range: -40°C to +85°C

U.L. Component Recognition File No.: E118169

Life: Dependent On Mating Jack

Maximum Cable Size: .285” diameter



Material

Pin: Copper alloy, gold-plated

Sleeve: Copper alloy, gold-plated

Handle: Copper alloy, black epoxy finished

Cable Clamp: C.R.S., electrotin-plated

Insulator: Rigid plastic

More Information
Connector Type RCA / Phono
Manufacturer Switchcraft
Metal Type.... Gold Plated
Poles No
Boot Colour No
Cable Colour.... No
