Female Amphenol EP6 Speaker Connector - Metal - EP-6-13P
£48.48
In stock
We have 1 items in stock!
Only 1 left
SKU
SPEAKON_EP6.FEMALE.SILVER
Multibuy discounts calculated at checkout
- Buy 5 for £46.06 each and save 5%
- Buy 10 for £43.63 each and save 10%
- Buy 15 for £41.21 each and save 15%
- Buy 20 for £38.78 each and save 20%

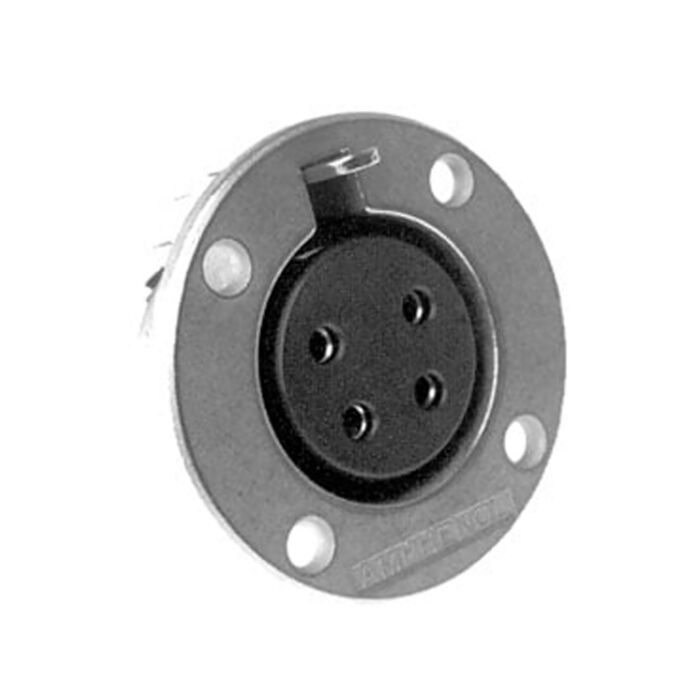

Female Amphenol EP6 Loudspeaker Chassis Connector
The EP Series has set the standard in high performance speaker connectors, by incorporating a rugged zinc diecast shell to give it maximum durability when used in demanding situations. The EP cable connector cable flex relief design minimises cable bend stress at point of entry into the connector housing, it also features a quick release vibration resistant latch lock. The Amphenol EP & AP series are completely interminable.
Technical Specifications
Positions - 6
Current Carrying Capacity - 20A
Housing Material - Diecast Zinc Alloy
Finish - Nickel
Contact Type - Machined
IP Rating - IP40
Termination - Solder
Max Wire Gauge - 12AWG
Operating Temperature - -25°C to +75°C (-13°F to +167°F)
Mating Cycles - 1000
Flammability Rating - UL94V-0
Environmental - Complies with EU RoHS 2 Directive 2011/65/EU
Application(s) - Audio & Lighting
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Panel Mount - Solder |
| Number of Contacts | 6 Pole |
| Pack Quantity | Pack of 1 |
