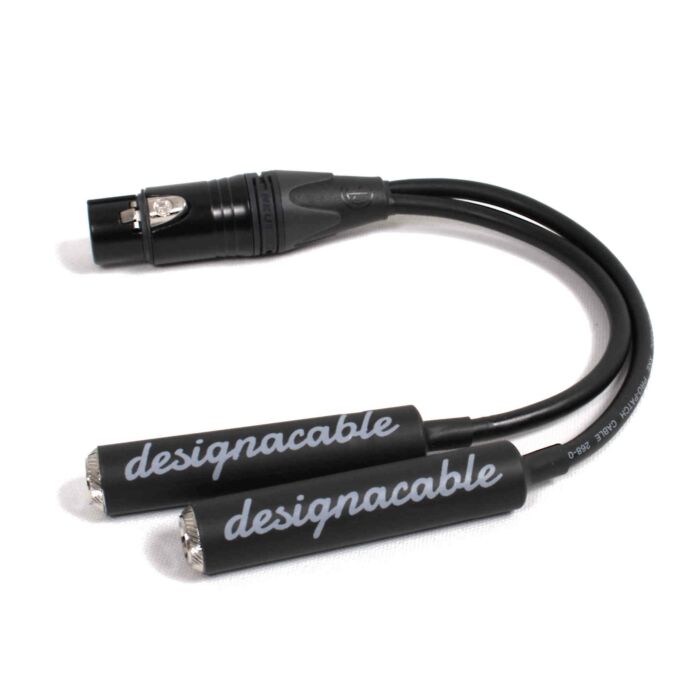

Female XLR to 2x 6.35mm TRS Sockets parallel splitter Balanced Adaptor
£21.71
In stock
We have 58 items in stock!
SKU
NC3FXX-BAG-2xMIPP.0010-2xNYS2203P
Multibuy discounts calculated at checkout
Passive balanced audio signal splitting adapter, taking one audio signal and splitting it into two signals.
Passive balanced audio signal splitting adapter, taking one audio signal and splitting it into two signals.
Having this handy Adapter in your live rig bag or keeping them around the studio, for all round handiness as you never know when the situation will arise when an adaptor resolves the situation quickly.
This cable has been constructed using the best quality connectors from Neutrik, with pro grade Van Damme cable. While selecting the slender profile socket keeping the size of the cable down, as we all know that patch bays can get messy.
Connectors –
NC3FXX-BAG – 3 pole female cable connector with black metal housing and silver contacts.
NYS2203P – 3 Pole, 6.35mm (¼") jack socket - full metal Socket with >1GR Insulation resistance.
Cable –
Van Damme XKE Microphone Balanced Pro-Patch – 2 Core and Screen, Silver and UPOFC Wire Core, UPOFC Wire Screen.
| Delivery Speed | Made to Order - Next Day Delivery Available |
|---|---|
| Cable Capacitance | Core to screen pF/m 95 nominal |
| Cable Resistance | Conductor Ohm/Km <85 |
| Cable Conductor | (24awg) Bare silver plated UPOFC wire, Stranding 7 x 0.10mm. Bare UPOFC wire, Stranding 21 x 0.10mm |
| Cable Screening | 96 x 0.10mm braided tinned oxygen free copper wire. Coverage 95% |
| Cable Jacket | Flexible PVC/Neoprene composite |
| Overall Diameter | 4.85mm ±0.10 |
| Cable Brand | Van Damme |
| Application | Tour & Studio Grade |
| Contact Material | Nickel Plated |
| Number of Contacts | 3 Pole |
