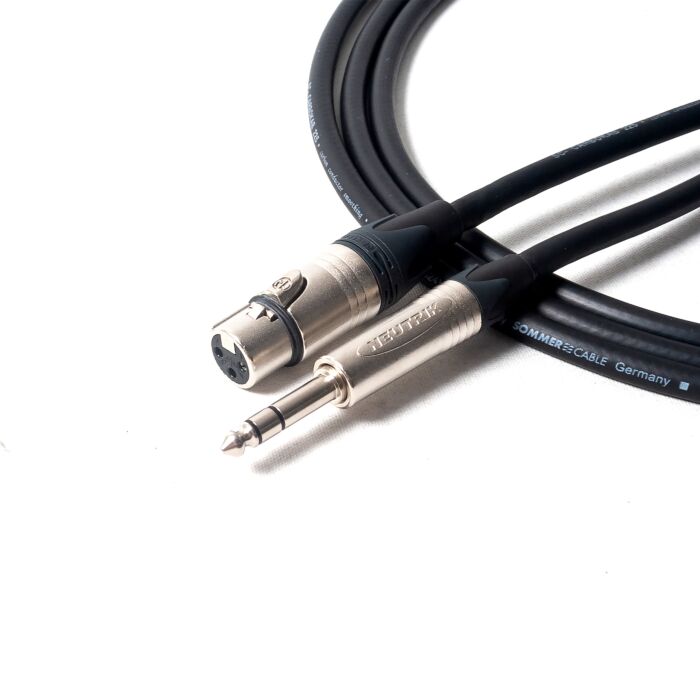

Female XLR to TRS Jack Lead. Balanced SOMMER CARBOKAB Mic Cable. 10m 6m 3m 20m

This range of balanced leads uses Sommer’s SC Carbokab ‘2 Core and Multi-Screen cable’. The cable utilises ‘Carbon Conductor smoothing’ around the centre core to vastly improve the signal transmission. The smoothing is essentially a carbon wrap that makes the centre core act like a solid core of copper and not individual strands. This gives you the sonic benefits of a single core cable but the flexibility and durability of stranded core.

Advantages:

• Linear audio transmission due to carbon conductor smoothing to emulate the benefits of a solid wire
• Low capacitance due to the use of the HD-PP high-end insulating material
• Excellent shielding with Cu mesh screen (+ drain wire) and AL fleece
• High conductivity due to the use of OFC 6 (oxygen-free class 6) copper

Application:

• Highly professional studio and installation technology
• Demanding OB van technology for radio and broadcasting
• First-class hifi connection (red and white conductors on pin 1, separate shielding)

Carbokab Technical Data:

• Properties: Digital 110 Ω AES / EBU
• Properties: OFC oxygen free copper
• Colour: black
• Jacket material: S-PVC
• Jacket Ø: 7,60 mm
• Inner conductor (audio): 0,25 mm². AWG (audio): 23
• Shielding: Copper braiding tin-plated 95% + AL-fleece + filler strand
• Shielding factor: 100 %
• Copper strands (audio): 65
• UV-resistant: yes
• cond./shield. per 1 m (audio): 90 pF
• Impedance: 110 Ω
• Conductor resistance per 1 km: 78 Ω

Neutrik Connectors Technical Data:

The stylish looking connectors use Neutriks rugged chuck type cable strain relief along with a tough polyurethane boot and die cast metal casing.

The Silver Contacts are made from bronze and plated with silver. The conductivity is superior to gold.

Electrical

• Capacitance between contacts - ≤ 4 pF
• Rated current per contact - 16 A
• Rated voltage - 50 V

Materiel

• Boot - Polyurethane
• Contact plating - 2 µm Ag
• Contacts - Bronze (CuSn8)
• Locking element - Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
• Shell - Zinc diecast (ZnAl4Cu1)
• Shell plating - Nickel
