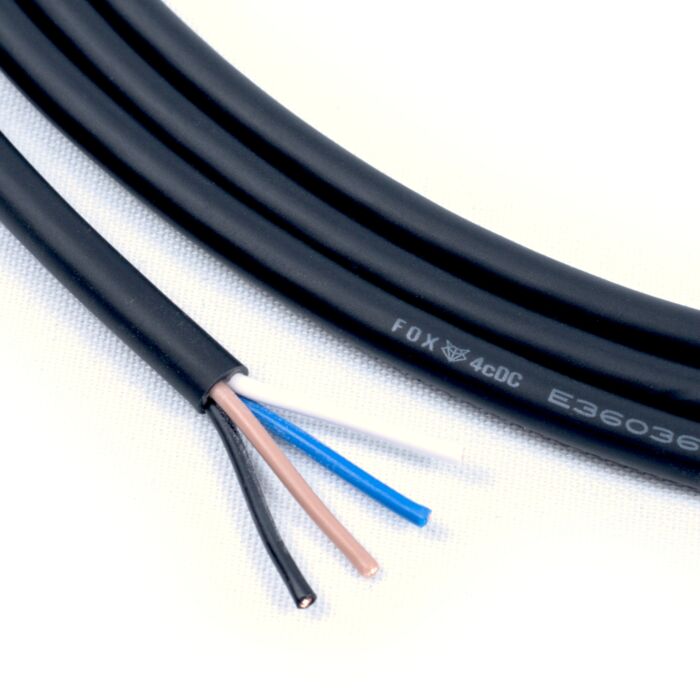

FOX 4cDC 4 Core TPU Power Cable (4x0.75mm). 1457461 & 30-03394 Alternative
As low as
£0.45
In stock
SKU
FOX.4core.TPU.0.75mm
Multibuy discounts calculated at checkout
4 core 0.75mm (18AWG) TPU control cable, for a varity of applications.
Detailed specifications for a twisted copper cable, including its construction, electrical characteristics, and compliance information.
Cable Specification
- Inner conductor: Stranded BC 0.75mm², 18AWG, 42X0.15mm twisted copper.
- Insulation: SR-PVC with an inner diameter of 1.75±0.05mm.
- Jacket: TPU, RAL9005 matte black, outer diameter 5.5±0.15mm.
- Packing method: 300m on a polywood reel.
Electrical Characteristics
- Inner conductor resistance: 26 ohm/km at 20°C.
- Insulation resistance: 1 MΩ/km at 20°C.
- Maximum operating voltage: 300V RMS.
- Test voltage: 3000V.
Mechanical Characteristics
- Rated temperature for fixed installation: 80°C.
- Rated temperature for flexible installation: 80°C.
- Oil resistance: Low adhesion.
- Hydrolysis and microbe resistance.
- Abrasion resistance: Resistant to salt water.
Compliance
- RoHS compliant.
- REACH compliant.
- Document date: 2025-04-23.
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Cable Type | Low Voltage DC Power |
| Data Sheet URL | Download Data Sheet |
| Cable Brand | Fox Cables |
| Cable Conductor | 0.75mm |
| Overall Diameter | 5.5mm (+/- 0.15mm) |
| Cable Jacket | FR-Polyether-Based TPU |
