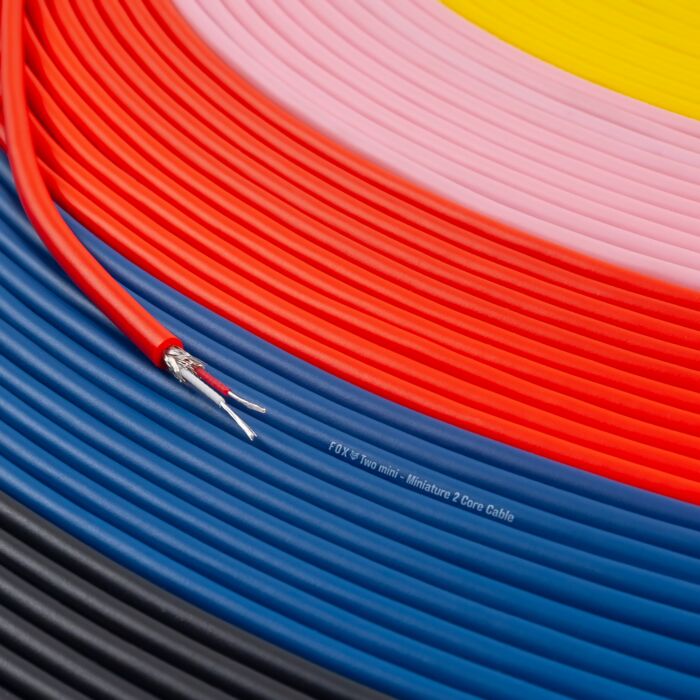

FOX TWO mini - Miniature 2 Core & Screen Cable

FOX Two.mini is a thin, tough, and highly flexible cable. This cable has silver plated conductors for excellent signal transmission and is available in 5 colours.

Construction

The two inner conductors are tightly wound along with fiber-fillers. This evenly induces interference and limits microphonics that are caused by static build up when the conductors are allowed to move. A braided copper shield is then applied before a PVC over-jacket is extruded to hold the internals in place.

Applications

• RT3 and TA3 leads (For Wireless Packs)
• Light-weight balanced XLR and TRS leads (For Patchbays)
• Eurorack leads with 3.5mm jacks
• Eurorack DC Patch leads (+)Join the two inner cores / (-)Screen
• Permanent Rack-wiring
• Looming into Multicores
• Stereo/Heaphone leads including 2.5mm and 3.5mm Mini Jacks

Technical Specification

• 2 Core & Screen Cable
• Flexible PVC Jacket. Black, Blue, Red, Yellow, Pink
• 4.1mm Overall Diameter
• Silver Plated Copper Conductors
• Conductor Diameter (28awg)
• Fiber fillers to reduce microphonics
• Braided 'Tin Plated Copper' Shield
• Capacitance per meter - 157pf (Core to Shield)
• Capacitance per meter - 49pf (core to core)
• Resistance per meter - 0.25Ω (Conductors)
• Resistance per meter - 0.13Ω (Shield)
• Discreet printed branding
