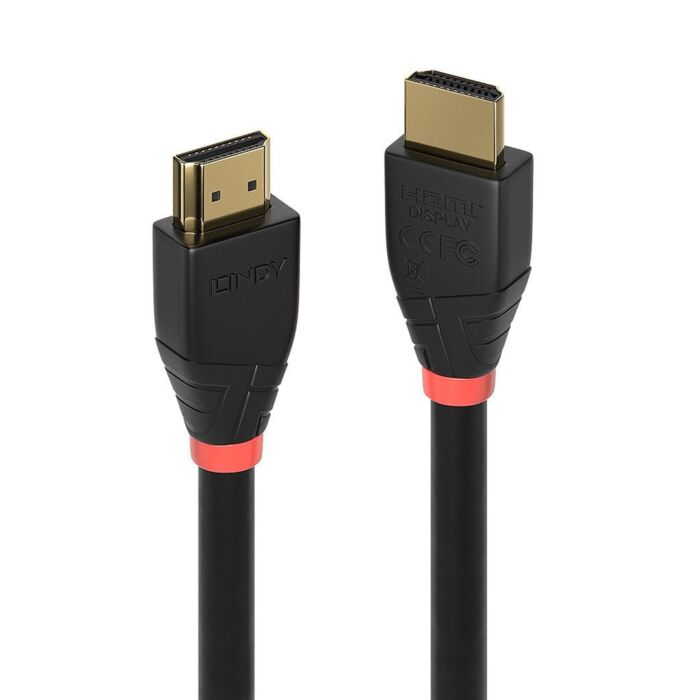

Lindy Active HDMI Cable - 4K 60Hz

The Lindy Active HDMI 4K60 Cable enables stable long-range transmission of high-resolution video and audio, supporting 4K UHD at 60Hz with 18Gbps data transfer. Its integrated signal boosting technology helps preserve image quality across extended cable lengths without additional hardware. Suitable for meeting rooms, classroom displays, control rooms, home entertainment setups and commercial AV environments where dependable HDMI connectivity is required.

Wiring Notes

The Lindy Active HDMI 4K60 Cable transmits digital audio and video signals from a source device (such as a PC, media player or games console) to a display like a TV, monitor or projector. Unlike standard HDMI cables, it includes a built-in active chipset inside the connector that amplifies the signal, allowing reliable transmission over longer distances without the need for extenders or repeaters. Supporting 18Gbps bandwidth, it delivers 4K Ultra HD video at 60Hz and multi-channel audio through a single connection, while shielding and high-quality copper conductors help maintain stable performance across the full length.

Why Lindy Cables?

Lindy cables are trusted worldwide for their reliable performance, robust construction and professional connectivity solutions used across AV and IT environments.

• Established brand – Over 90 years of expertise in connectivity and AV technology
• Active signal technology – Built-in chipset helps maintain stable 4K HDMI transmission over longer distances
• Professional build quality – Designed for dependable performance in home cinema, commercial AV, digital signage and IT installations

Technical Specifications

• Connector A: HDMI® Type A Male
• Connector B: HDMI® Type A Male
• Housing Material: ABS
• Connector Plating:24K Gold Flash
• Pin Construction: Phosphor Bronze
• Pin Plating: 24K Gold 3µm
• Dimensions WxDxH (approx.): 21.68x43x13.22mm (0.85x1.69x0.52in)
• Jacket Diameter: 8mm (0.31in)
• Jacket Material: PVC
• Conductor Material: Bare Copper
• Conductor Gauge: 26AWG
• Shielding: Aluminium Foil Mylar, 100% / Aluminium Alloy Braiding, 70%
• Supported Bandwidth: 18Gbps
• Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit 300KHz~825MHz <5dB 2.475GHz~4.125GHz 12dB-20dB
• Minimum Bend Radius: 100mm (3.94in)
• Operating Temperature: -20°C - 80°C (-4°F - 176°F)
• Storage Temperature: -10°C - 60°C (14°F - 140°F)

Standards & Compliance

• RoHS certified
• REACH certified
• UL certified
• CE certified
• FCC certified

Part Numbers

• 41016 - Lindy Active HDMI Cable - 4K 60Hz - 7.5m
• 41071 - Lindy Active HDMI Cable - 4K 60Hz - 10m
• 41072 - Lindy Active HDMI Cable - 4K 60Hz - 15m
• 41073 - Lindy Active HDMI Cable - 4K 60Hz - 20m
• 41074 - Lindy Active HDMI Cable - 4K 60Hz - 25m
• 41075 - Lindy Active HDMI Cable - 4K 60Hz - 30m
