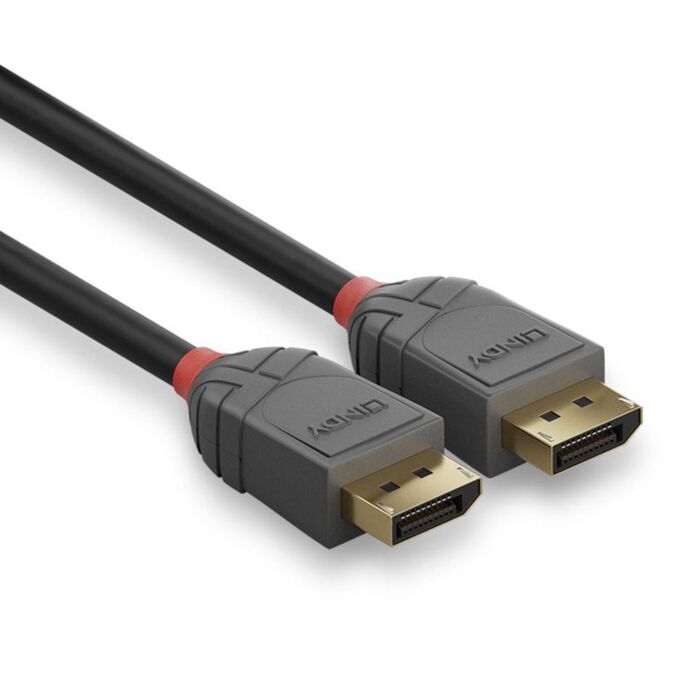

Lindy DisplayPort 1.4 Cable - Anthra Line

The Lindy DisplayPort 1.4 cable delivers reliable high-speed connectivity with 32.4Gbps bandwidth, supporting 8K at 60Hz and 4K at 144Hz, while triple shielding, gold-plated connectors and durable tinned copper conductors ensure stable performance and long-lasting AV connections.

Wiring Notes

A DisplayPort 1.4 cable transmits digital video and audio from a source device (such as a computer or graphics card) to a display using four high-speed data lanes. These lanes carry encoded data with a total bandwidth of up to 32.4Gbps, allowing support for high resolutions like 4K at high refresh rates and 8K at 60Hz. The display then decodes the signal and converts it into the image shown on the screen.

Why Lindy Cables?

Lindy cables are trusted worldwide for their reliable performance, durable construction and professional-grade connectivity solutions across AV and IT applications.

• Proven brand – Over 90 years of experience in connectivity technology
• High-quality construction – Designed for reliable signal transmission and durability
• Professional AV performance – Suitable for commercial, high performance AV and IT installations
• Triple shielded cable, corrosion resistant tinned copper 28AWG conductors

Technical Specifications

• Connector A: DisplayPort Male
• Connector B: DisplayPort Male
• Connector Housing Material: ABS
• Connector Plating: 24K Gold (15µm)
• Pin Construction: Phosphor Bronze
• Pin Plating: 24K Gold (3µm)
• Connector Dimensions: 21.0 × 38.9 × 13.6mm (0.83 × 1.53 × 0.54in)
• Standard: DisplayPort 1.4
• Jacket Diameter: 7.3mm (0.29in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 28AWG
• Shielding: Copper Braid (65%)
• Supported Bandwidth: 32.4Gbit/s
• Maximum Resolution: 7680×4320 @ 60Hz (4:2:2 8bit), 4096×2160 @ 144Hz (4:2:2 10bit)
• Nominal Attenuation: 100–450MHz <5.1dB, 450–8100MHz <33.28dB
• Minimum Bend Radius: 58.4mm (2.14in)
• Operating Temperature: -20°C to 80°C (-4°F to 176°F)
• ATC Approved

Standards & Compliance

• RoHS certified
• REACH certified
• UKCA certified
• UL certified

Part Numbers

• Lindy DisplayPort 1.4 Cable - Anthra Line - (50cm) Part Number: 36480
• Lindy DisplayPort 1.4 Cable - Anthra Line - (1m) Part Number: 36481
• Lindy DisplayPort 1.4 Cable - Anthra Line - (2m) Part Number: 36482
• Lindy DisplayPort 1.4 Cable - Anthra Line - (3m) Part Number: 36483
• Lindy DisplayPort 1.4 Cable - Anthra Line - (5m) Part Number: 36484
