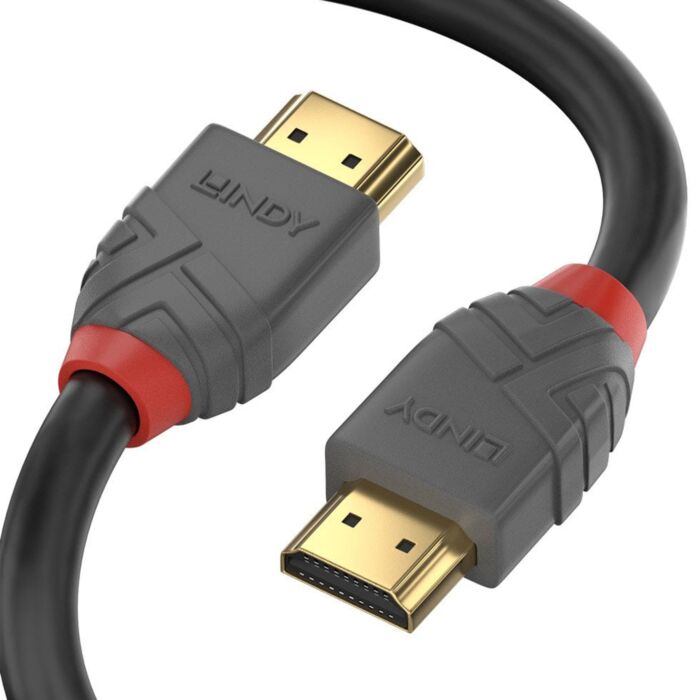

Lindy High Speed HDMI Cable - Anthra Line

Lindy High Speed HDMI Cable – Anthra Line is a professional-grade HDMI 2.0 cable designed for reliable AV and IT installations. Supporting 4K UHD resolutions up to 4096×2160 at 60Hz with 18Gbps bandwidth, it ensures clear, high-performance video and audio transmission. Built with triple shielding, high quality copper conductors and gold-plated connectors, it delivers excellent signal integrity and durability, making it ideal for home cinema, gaming systems and professional AV setups.

Wiring Notes

An HDMI cable carries digital audio and video from a source device (such as a laptop, console, or media player) to a display like a TV or monitor. It transmits high-speed data through internal copper wires, allowing both sound and high-resolution video, including 4K, to be delivered through a single cable.

Why Lindy Cables?

Lindy cables are trusted worldwide for their reliable performance, durable construction and professional connectivity solutions used across AV and IT installations.

• Proven brand – Over 90 years of expertise in connectivity and AV technology
• Quality construction – Designed for stable, high-speed HDMI signal transmission and long-lasting reliability
• Professional design – Engineered for dependable performance in home entertainment, commercial AV and IT environments

Technical Specifications

• Connector A: HDMI® Type A Male
• Connector B: HDMI® Type A Male
• Housing Material: PVC
• Connector Plating: 24K Gold 15µm
• Pin Construction: Phosphor Copper
• Pin Plating: 24K Gold 3µm
• Dimensions (approx.) WxDxH: 20x34.2x10.9mm (0.79x1.35x0.43in)
• Standard: High Speed HDMI® with Ethernet
• Jacket Diameter: 6mm (0.24in)
• Jacket Material: PVC
• Conductor Material: Copper
• Conductor Gauge: 30AWG
• Shielding: Copper Braid, 65%
• Supported Bandwidth: 18Gbps
• Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit
• Nominal Attenuation: 300kHz-825MHz <5dB, 825MHz-2.475GHz <5dB, 2.475GHz-4.125GHz <12dB, 4.125GHz-5.1GHz <20dB
• Minimum Bend Radius: 48mm (1.89in)
• Operating Temperature: -10°C - 80°C (14°F - 176°F)
• Storage Temperature: -10°C - 80°C (14°F - 176°F)

Standards & Compliance

• RoHS certified
• REACH certified
• UL certified
• ATC approved

Part Numbers

• 36960 - Lindy High Speed HDMI Cable - Anthra Line - 30cm
• 36961 - Lindy High Speed HDMI Cable - Anthra Line - 50cm
• 36962 - Lindy High Speed HDMI Cable - Anthra Line - 1m
• 36963 - Lindy High Speed HDMI Cable - Anthra Line - 2m
• 36964 - Lindy High Speed HDMI Cable - Anthra Line - 3m
• 36965 - Lindy High Speed HDMI Cable - Anthra Line - 5m
• 36966 - Lindy High Speed HDMI Cable - Anthra Line - 7.5m
• 36967 - Lindy High Speed HDMI Cable - Anthra Line - 10m
• 36968 - Lindy High Speed HDMI Cable - Anthra Line - 15m
• 36969 - Lindy High Speed HDMI Cable - Anthra Line - 20m
