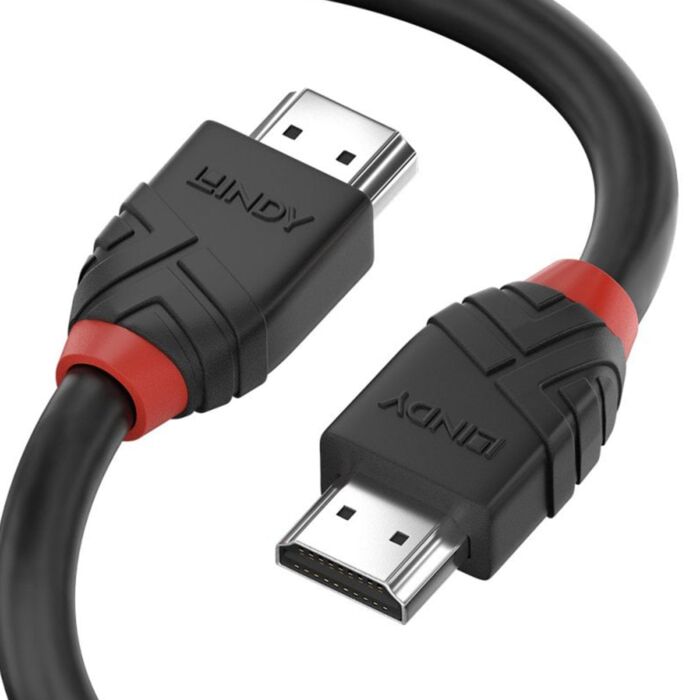

Lindy LSZH HDMI Cable - Low Smoke Zero Halogen

The Lindy LSZH HDMI cables provide dependable audio-visual connectivity with high-quality construction designed for professional installations. Featuring Low Smoke Zero Halogen insulation, they are well suited for use in public buildings, transport environments and safety-critical installations where reduced smoke and harmful emissions are important.

Wiring Notes

The Lindy 4K60Hz HDMI Cable (LSZH) transfers high-speed digital audio and video signals from a source device such as a laptop, media player, or games console to a display like a TV, monitor, or projector. Supporting up to 18Gbps bandwidth, it delivers 4K Ultra HD video at 60Hz and multi-channel audio through a single connection. The cable’s shielded copper conductors and gold-plated connectors help maintain stable signal transmission over the length, while the LSZH jacket reduces smoke and toxic emissions, making it suitable for professional and public installations.

Why Lindy Cables?

Lindy cables are trusted worldwide for their reliable performance, durable construction and professional connectivity solutions used across AV and IT installations.

• Proven brand – Over 90 years of experience in connectivity and AV technology
• High-quality construction – Engineered for stable signal transmission and long-lasting performance
• Installation-ready design – LSZH (Low Smoke Zero Halogen) jacket helps reduce smoke and toxic emissions, making it suitable for public buildings and safety-critical environments

Technical Specifications

• Connector A: HDMI® Type A Male
• Connector B: HDMI® Type A Male
• Housing material: LSZH PVC
• Connector plating: Gold Plating
• Pin construction: Copper Alloy
• Pin Plating: Gold Plated
• Jacket diameter: 5.5mm (0.21in)
• Jacket material: LSZH PVC
• Conductor material: Bare Copper
• Conductor gauge: 30AWG
• Shielding: Aluminum Foil
• Braid Shielding: Aluminum-Magnesium
• Supported bandwidth: 18Gbps
• Maximum resolution: 3840x2160@60Hz 4:4:4,8bit
• Nominal attenuation:300kHz~825MHz<5dB 825MHz~2.475GHz<5dB 2.475GHz~4.125GHz<12dB 4.125GHz~5.1GHz<20dB
• Minimum bend radius: 60mm (2.36in)
• Operating Temperature: -10°C - 80°C (14°F - 176°F)

Standards & Compliance

• RoHS certified
• REACH certified
• California Proposition 65 certified

Part Numbers

• 36501 - Lindy LSZH HDMI Cable - Low Smoke Zero Halogen - 50cm
• 36502 - Lindy LSZH HDMI Cable - Low Smoke Zero Halogen - 1m
• 36503 - Lindy LSZH HDMI Cable - Low Smoke Zero Halogen – 2m
• 36504 - Lindy LSZH HDMI Cable - Low Smoke Zero Halogen – 3m
• 36505 - Lindy LSZH HDMI Cable - Low Smoke Zero Halogen – 5m
• 36506 - Lindy LSZH HDMI Cable - Low Smoke Zero Halogen – 7.5m
• 36507 - Lindy LSZH HDMI Cable - Low Smoke Zero Halogen – 10m
