Mogami 8 Pair Multicore W2932. Black Studio Grade Super-Flexible Bulk Snake Cables

As low as £6.42
In stock
SKU
CABLE_Multicore_MOGAMI_08MOGAMI-(8-pair)

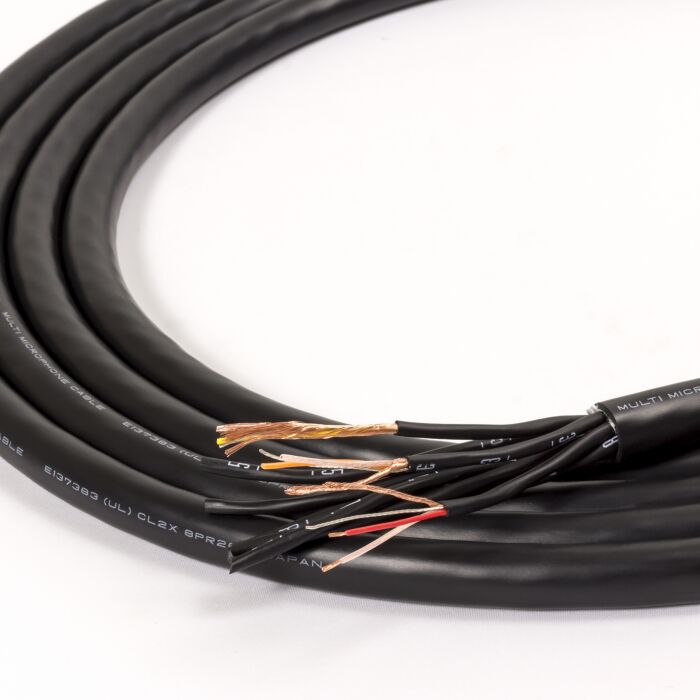

Mogami multicore cables are designed for the highest level of audio performance and feature superb electrical and mechanical characteristics while remaining compact, super-flexible and easy to use.

  • Individually twisted shielded pairs, available in 2 to 48 channels.
  • XLPE (Cross Linked Polyethylene) insulation provides superb electrical characteristics and will not melt or shrink back during soldering.
  • Rugged and flexible construction that is easy to handle, even at temperatures down to -20°C (-4°F).
  • Easy cable identification system:
    • Channel numbers are printed and underlined on each core jacket to ensure correct identification, regardless of which end is stripped.
    • Outer jackets of each pair are colour coded by standard resistor colour code, allowing quick identification of conductor pairs.
    • Inner conductors are also colour coded based on the international standard resistor colour code. Each pair is colour coded by jacket and conductor colour combination.
  • Each channel has a drain wire and served (spiral) bare copper shield. The drain wire simplify termination and can be crimped by the same size contact as the inner conductor pair.
  • CL2 rated version available. Conductor size of CL2 rated version is thicker #25AWG so that it is also recommended for rugged application and firm and easier crimp terminal connector wiring as well as NEC fire regulation requirement.



STANDARD VERSION

Part No.

No. of Channels

Ov. Dia. (Approx. mm)

Jacket Thickness (Approx. mm)

Weight (kg/100m)(kg/328Ft)

Maximum Length available

W2930

2-ch

7.5(0.295")

1.0(0.039")

7

506m (1,659Ft)

W2931

4-ch

8.6(0.339")

1.0(0.039")

9

W2932

8-ch

11.5(0.453")

1.2(0.047")

18

W2933

12-ch

14.3(0.563")

1.5(0.059")

28

W2934

16-ch

15.8(0.622")

1.5(0.059")

32

305m (1,000Ft)

W2935

19-ch

17.0(0.669")

1.7(0.067")

40

W2936

24-ch

20.0(0.787")

2.0(0.079")

46

W2937

27-ch

20.5(0.807")

2.0(0.079")

58

W2938

32-ch

21.7(0.854")

2.0(0.079")

63

W2939

48-ch

26.0(1.02")

2.0(0.079")

97

200m (656Ft)



CABLE CORE SPECIFICATIONS

Conductor

30/0.08A (0.15mm²) #26AWG             (30×#40AWG)

Insulation

1.0Ø XLPE (Cross Linked Polyethylene)      (0.039")

Drain Wire

7/0.18TA (0.18mm²) #25AWG               (7×#33AWG)

Served Shield

Approx. 58/0.10A Served (spiral) Shield

Jacket (Covering)

2.8Ø Flexible PVC                                              (0.110")

Identification

See core number identification table


Figure (1)



ELECTRICAL & MECHANICAL CHARACTERISTICS

DC Resistance at 20°C

Inner Pair Conductor

0.13Ω/m(0.040Ω/Ft)

Shield

0.031Ω/m(0.0095Ω/Ft)

Capacitance at 1kHz, 20°C (Partial Capacitance Value) See Figure (1)

K0

130pF/m(40pF/Ft)

K1

12pF/m(3.7pF/Ft)

Inductance

0.6µH/m(0.18µH/Ft)

Electrostatic Noise (Hum Pick-up)*

2.5mV Max.

Electromagnetic Noise at 10kHz*
   (Inductance of the toroidal core: 595µH)

0.1mV Max.

Microphonics*
   Method: Stepping on cable

50mV Max. at 50kΩ/ Load

Voltage Breakdown

Must withstand at DC 500V/15sec.

Insulation Resistance at DC 125V, 20°C

100000 MΩ/ × m Minimum

Tensile Strength of one pair (26°C, 65% RH)

274N

Emigration

Non-emigrant to ABS resin

Applicable Temperature

-20°C‾ +70°C(-4°F‾ +158°F)

Standard

UL13 CL2X 60°C / UL 20002 AWM 30V 60°C VW-1

* Using standard testing methods of Mogami Wire & Cable Corp.

More Information
Cable Type Multicore
Brand.... Mogami
Cable Conductor 30/0.08A (0.15mm²) #26AWG
Cable Resistance 0.13Ω/m(0.040Ω/Ft)
Cable Capacitance 130pF/m(40pF/Ft)
Cable Screening Approx. 58/0.10A Served (spiral) Shield
Overall Diameter 11.5mm
Cable Jacket 2.8Ø Flexible PVC
