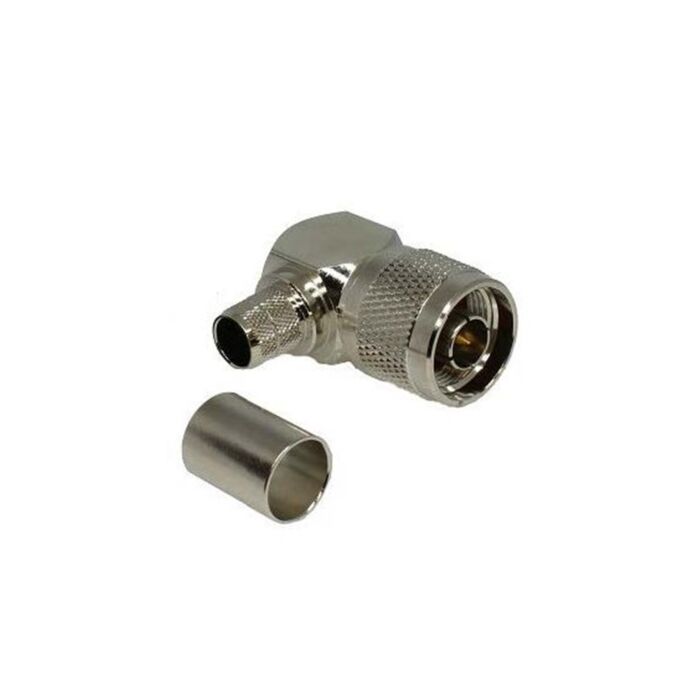

N-Type Angled Crimp Plug for WEB400 RG8 & H1000
£6.61
In stock
We have 0 items in stock!
SKU
Coax_NTYPE.RA.WEB400
Multibuy discounts calculated at checkout
The Webro 55-220-1580K-070 is a right-angled, crimp N-Type plug for professional coaxial cables like WEB400, RG8, and H1000, ideal for high-frequency RF applications in tight spaces.
The Webro 55-220-1580K-070 is a right-angled, crimp N-Type plug for professional coaxial cables like WEB400, RG8, and H1000, ideal for high-frequency RF applications in tight spaces.
- Shell/Body: Nickel Plated Brass
- Pin: Gold Plated Brass
- Insulator: PTFE
- Ferrule: Nickel Plated Brass
- Impedance: 50 Ω
- Frequency Range: 3 GHz, DC
- Dielectric Withstanding Voltage: 2500 V RMS
- Contact Resistance Centre: 1mΩ
- Outer: 1mΩ
- Insulation Resistance: 5000mΩ
- Mating: 5/8"-24UNEF-2B
- Durability: 500 cycles
- Temperature Range: -55°C to +155°C
- RoHS 3 Compliant: Yes
- Pin: Solder
- Ferrule: 10.9mm hex
- Suitable Ratchet Tool: Webro Part No. 55-901-0043-115
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Cable Mount - Crimp |
| Series Range Name | Standard 50ohm |
| Contact Material | Gold Plated |
| Number of Contacts | 2 Pole |
| Pack Quantity | Pack of 1 |
| Manufacturer URL | Download Data Sheet |
