Neutrik NC3FD-LX-B Female 3 pin XLR Chassis Panel Mount. Gold Contacts

NC3FD-LX-B

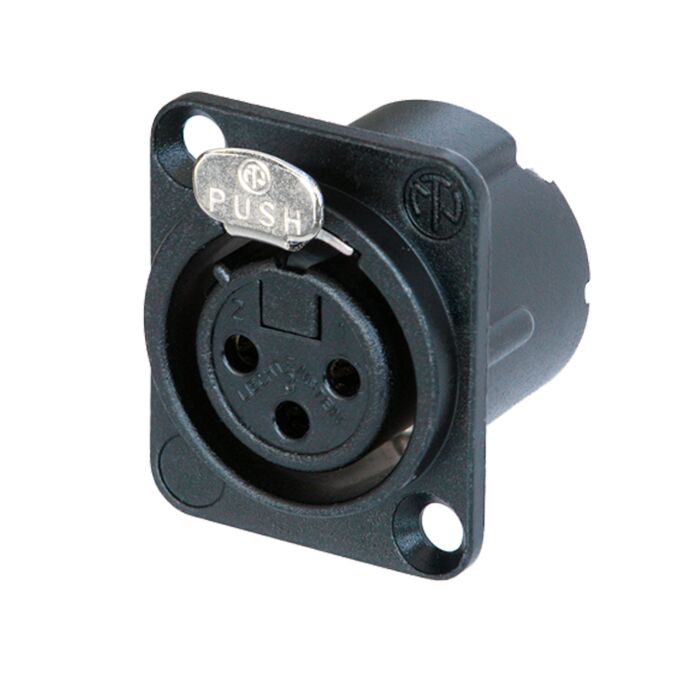

3 pole female receptacle, solder cups, black metal housing, gold contacts

Features and Benefits

• All metal housing offers best overall RF protection and electromagnetic shielding
• Duplex ground contact for excellent contact integrity between chassis and cable connector
• Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact
• Female contact incorporates a solder barrier to prevent solder running into the contact mating area
• Larger solder contacts for easier termination
• Optional connection to easily join pin1 to chassis ground
• D-style housing provides installation compatibility with industry standard D mounting dimensions

Electrical

• Capacitance between contacts ≤ 4 pF
• Contact resistance ≤ 5 mΩ (inner)
• Dielectric strength 1,5 kVdc
• Insulation resistance > 2 GΩ (initial)
• Rated current per contact  16 A
• Rated voltage 50 V

Mechanical

• Insertion force ≤ 20 N
• Withdrawal force ≤ 20 N
• Lifetime > 1000 mating cycles
• Wiresize max. 2.5 mm²
• Wiresize
• max. 14 AWG
• Wiring Solder contacts
• Locking device - Latch lock
• Chassis shape - D

Material

• Contact plating - 0.2 µm Au hard alloy over 2 µm Ni
• Contacts - Bronze (CuSn6)
• Insert - Polyamide (PA 6.6 30 % GR)
• Locking element - Stahl Ck67
• Shell - Zinc diecast (ZnAl4Cu1)
• Shell plating - Black chromium

Environmental

• Flammability - UL 94 HB
• Standard compliance - IEC 61076-2-103
• Protection class - IP 40
• Solderability - Complies with IEC 68-2-20
• Temperature range -30 °C to +80 °C
