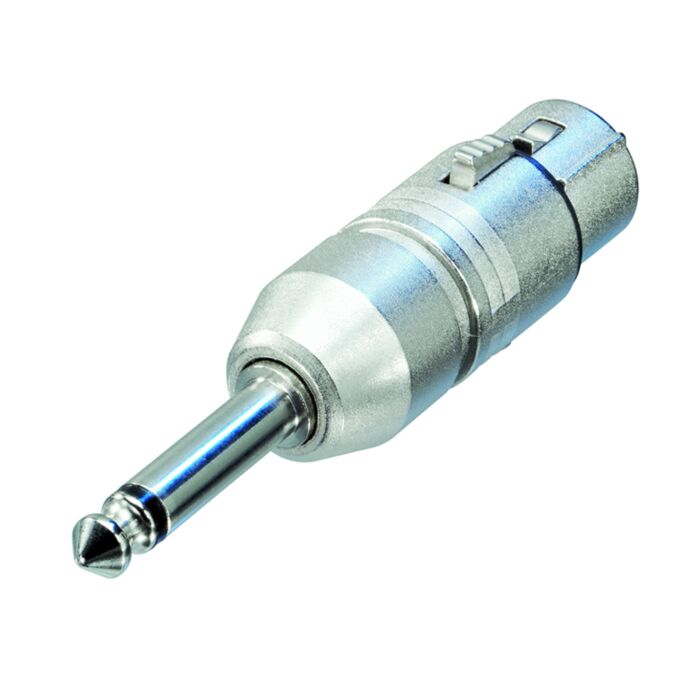

Neutrik NA2FP 3 Pin Female XLR to Mono Quarter plug Audio Adaptor Convertor Changer

NA2FP

3 pole XLR female – Mono 1/4" plug (tip, sleeve contact)

Wired according to IEC 268-12:

Pin 2: signal

Pin 1 and 3: connected to ground

Features and Benefits

• Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
• Professional look and compact space saving design, based on the X Series (XLR worldwide accepted standard)
• Rugged diecast shell for best reliability.

Technical Information

Electrical

• Contact resistance - ≤ 3 mΩ (XLR)
• Contact resistance - ≤ 6 mΩ
• Dielectric strength - 1.5 kV dc / > 1 kVdc (XLR/Plug)
• Insulation resistance - > 2 GΩ

Mechanical

• Wiring - according to IEC 268-12 pin 2 = signal, pin 1 and 3 connected to ground
• Locking device - Latch lock

Material

• Contact plating - 2 µm Ag over 2 µm Ni
• Contacts - Brass (CuZn39Pb3) (plug)
• Insert - Polyamide (PA 6.6 30 % GR)
• Shell - Zinc diecast (ZnAl4Cu1)
• Shell plating - gal Cu/Ni

Environmental

• Temperature range - -20 °C to +65 °C
