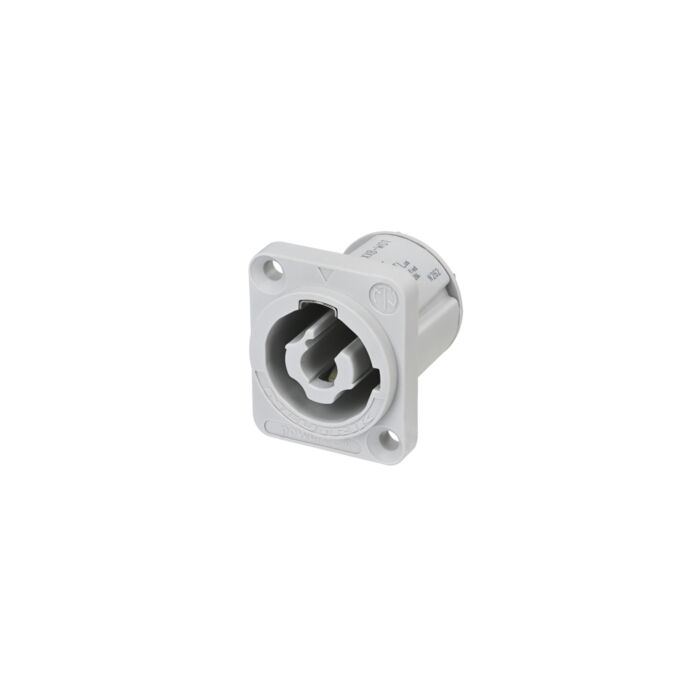

Neutrik NAC3MPXXB-WOT. powerCON AC Power. Male plug
£3.94
In stock
We have 240 items in stock!
SKU
CHASSIS_NAC3MPXXB-No.Barrier
Multibuy discounts calculated at checkout
- Buy 5 for £3.74 each and save 5%
- Buy 10 for £3.55 each and save 10%
- Buy 15 for £3.35 each and save 15%
- Buy 20 for £3.15 each and save 20%
Lockable single phase connector
This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 60320-1.
Appliance outlet connector, 3/16" flat tab terminals, grey
The powerCON XX is a locking mains connector. It replaces appliance couplers wherever a very reliable solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON XX is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Technical Info
- Certified according to IEC 60320-1 & UL 60320-1
- 3 contacts for line, neutral and premating safety ground
- Certified according to UL-1977 & CAN/CSA-C22.2 No. 182.3
- Fast and easy twist lock latching system Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility
- of intermating
- Extremely robust and reliable
- IEC 62368-1 compliant
- UL94 V-0 materials used
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Connection Type | Neutrik 20a Powercon |
| Mounting Method | Panel Mount - Flat Tabs |
| Series Range Name | Neutrik powerCON |
| Contact Material | Silver Plated |
| Number of Contacts | 3 Pole |
| Current Rating | 20 amps |
| Voltage Rating | 230-240v |
| Pack Quantity | Pack of 1 |
| Manufacturer URL | Download Data Sheet |
| Data Sheet URL | Download Data Sheet |
