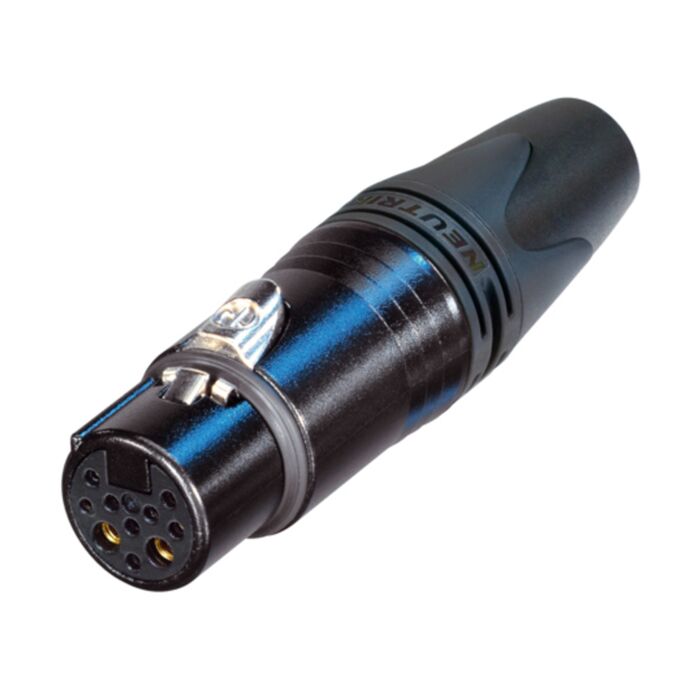

Neutrik NC10FXX-14-B 10 Pole Female XLR connector. 8 Data + 2 Power pins

Features and Benefits

• Suitable for data offering CAT 5e performance and power up to 16 A and 50 V - exceeds PoE+ capabilities
• Superior ruggedness compared to RJ45 type connectors
• All metal housing offers best overall RF protection and electromagnetic shielding

Technical Information

• Title - NC10FXX-14-B
• Connection Type - XLR
• Gender - female

Electrical

• Contact resistance - ≤ 3 mΩ
• Dielectric strength - 1 kVdc
• Insulation resistance - > 10 GΩ (initial); 0.1 (after damp heat test)
• Number of electronical contacts - 8 + 2
• Rated current per contact - 16 A (power pins), 3 A (data pins)
• Cable shield - shell connection:choosable
• Transmission performance - CAT 5e

Mechanical

• Cable O.D. - 8.0 - 10.0 mm
• Insertion force - ≤ 20 N
• Withdrawal force - ≤ 20 N
• Lifetime - > 1000 mating cycles
• Wiresize - 2.5 mm² / AWG 14 (power pins), 1 mm² / AWG 18 (data pins)

Material

• Bushing - PA / PU
• Contact plating - 0.2 μm Au hard alloy over 2 μm Ni
• Contacts - Brass (CuZn39Pb3)
• Insert - PA66
• Locking element - Zinc diecast (ZnAl4Cu1)
• Shell - Zinc diecast (ZnAl4Cu1)
• Shell plating - Black chromium
• Strain relief - POM

Environmental

• Flammability - UL 94 V-0
• Protection class - IP 40
• Solderability - Complies with IEC 68-2-20
• Temperature range - -30 °C to +80 °C
• Manufacturing Standard - IEC 61076-2-10
