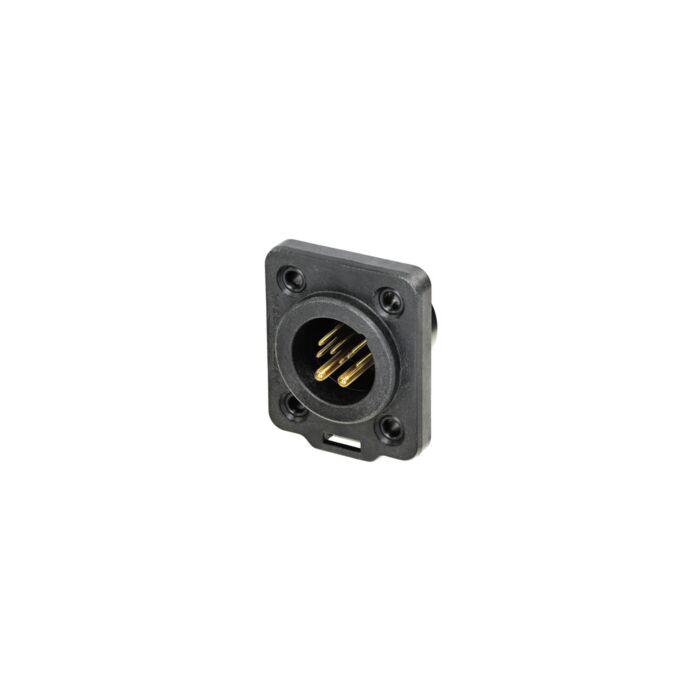

Neutrik NC10MDX-TOP. 8 + 2 Pole Series XLR. Male plug
£32.47
In stock
We have 89 items in stock!
SKU
CHASSIS_NC10MDX-TOP
Multibuy discounts calculated at checkout
- Buy 5 for £30.85 each and save 5%
- Buy 10 for £29.22 each and save 10%
- Buy 15 for £27.60 each and save 15%
- Buy 20 for £25.98 each and save 20%
NC10MDX-TOP
8+2 pole male chassis connector, TRUE OUTDOOR PROTECTION (TOP)
The X-TOP series is a "heavy-duty" XLR chassis connector for outdoor use. Outdoor protected by mating with related cable connector of the XLR TOP range (IP65 and UL50E). Gold contacts are standard.
NC10MDX-TOP
8+2 pole male chassis connector, TRUE OUTDOOR PROTECTION (TOP)
The X-TOP series is a "heavy-duty" XLR chassis connector for outdoor use. Outdoor protected by mating with related cable connector of the XLR TOP range (IP65 and UL50E). Gold contacts are standard.
Features and Benefits
- Heavy-duty sealed XLR connector range for harsh and demanding environment
- Suitable for data offering CAT 5e performance and power up to 16 A and 50 V - exceeds PoE+ capabilities
- Outdoor protection according to IP65. Maintains sealing when in use and when disconnected.
- Superior ruggedness compared to RJ45 type connectors
- High impact UV-resistant materials
- Outdoor protection according to IP65. Maintains sealing when in use and when disconnected
- D-size housing provides installation compatibility with industry standard D mounting dimensions
- IEC 61984 certified
- Receptacle with duplex ground contact for excellent signal integrity
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Panel Mount - Solder |
| Series Range Name | 8 + 2 Pole Series |
| Contact Material | Gold Plated |
| Number of Contacts | 10 Pole |
| IP Rating | IP65 |
| Pack Quantity | Pack of 1 |
| Manufacturer URL | Download Data Sheet |
| Data Sheet URL | Download Data Sheet |
