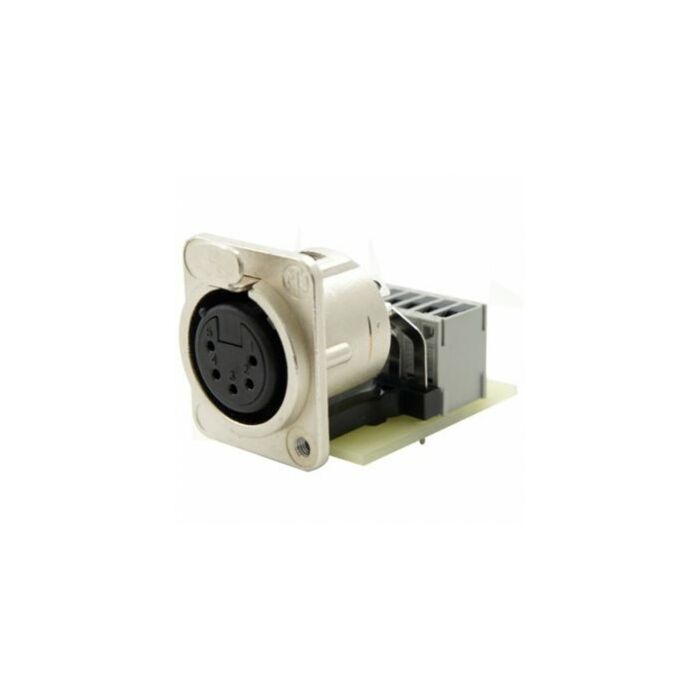

Neutrik NC5FDM3-H-PCB-IDC. XLR. Female socket

PCB adapters fitted with 4 or 5 pin male or female XLR chassis connectors terminated with IDC or screw terminals. For use where cables have been installed and wall plates or patch bays need fixing at high speed and in a cold (no soldering) environment. The IDC terminals do not require a punch down tool and will accept 0.5 - 0.64 mm wire with a maximum OD of 1.8mm.

The depth behind the panel for the IDC version is 47.5mm, see NC4FDM3-H, NC4MDM3-H, NC5FDM3-H or NC5MDM3-H for other dimensions.

4 pin female XLR to IDC

Order Code : NC4FDM3-H-PCB-IDC

4 pin male XLR to IDC

Order Code : NC4MDM3-H-PCB-IDC

5 pin female XLR to IDC

Order Code : NC5FDM3-H-PCB-IDC

5 pin male XLR to IDC

Order Code : NC5MDM3-H-PCB-IDC
