Neutrik 5 Pin NC5FXX Female XLR Connector

NC5FXX

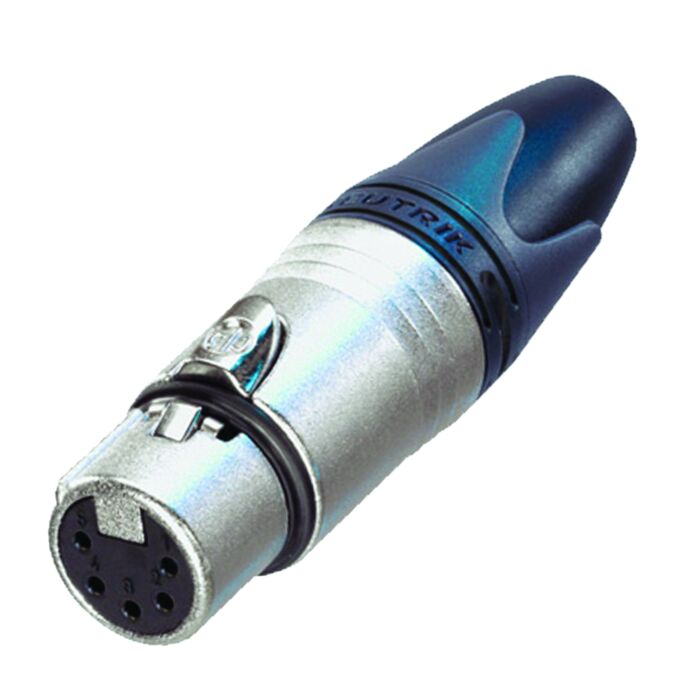

5 pole female cable connector with Nickel housing and silver contacts.

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Features and Benefits

• Unique cage design of female contact for low contact resistance and high integrity
• Female contact incorporates a solder barrier to prevent solder running into the contact mating area
• Female connector with improved solid metal latch which is larger and easier to handle
• Additional ground spring contacts for better shell ground continuity
• Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
• Boot with polyurethane gland gives high protection to cable bending stresses
• Colored rings and boots available for coding or identification
• Sleek and ergonomic design - valuable and handy
• Rugged zinc diecast shell, longlasting and dependable
• Internal thread on shell is well proteced against any damage
• Branded with unique hologram - guarantees genuine and authentic Neutrik product

Technical Information

Electrical

• Capacitance between contacts - 7 pF
• Contact resistance - 3 mΩ (inner)
• Dielectric strength - 1,5 kVdc
• Insulation resistance - 2 GΩ (initial)
• Rated current per contact - 7,5 A
• Rated voltage - 50 V

Mechanical

• Cabel O.D. - 3.5 - 8.0 mm
• Insertion force -  20 N
• Withdrawal force -  20 N
• Lifetime - 1000 mating cycles
• Wiresize - max. 1.0 mm²
• Wiresize - max. 18 AWG
• Wiring - Solder contacts
• Locking device - Latch lock

Material

• Boot - Polyurethan
• Contact plating - 2 µm Ag over 2 µm Ni
• Contacts - Brass (CuZn39Pb3)
• Insert - Polyamide (PA 6.6 30 % GR)
• Locking element - Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
• Shell - Zinc diecast (ZnAl4Cu1)
• Shell plating - Nickel
• Strain relief - Polyacetal (POM)
