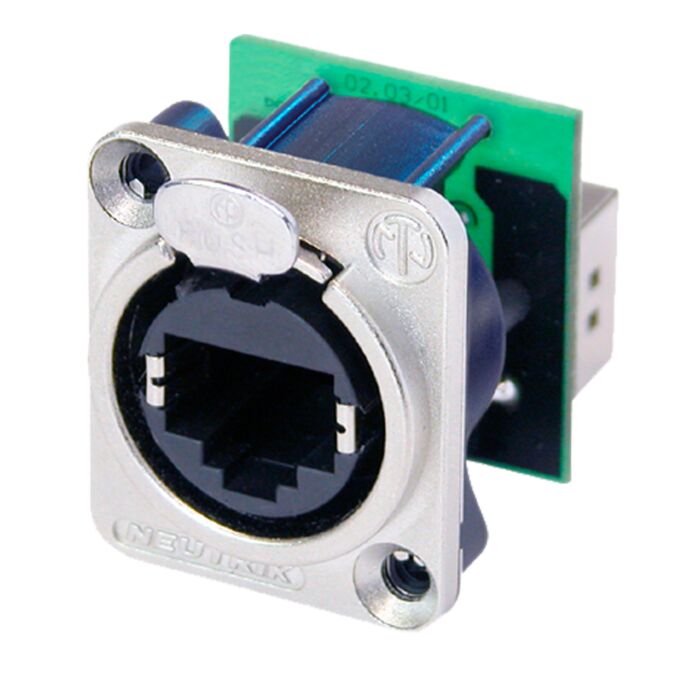

Neutrik NE8FDP Feed-through Ethercon Chassis Panel Mount

£8.62
In stock
We have 55 items in stock!
SKU
CHASSIS_NE8FDP
  • Buy 10 for £8.19 each and save 5%
  • Buy 20 for £7.76 each and save 10%
  • Buy 50 for £7.33 each and save 15%
  • Buy 100 for £6.90 each and save 20%

The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.

NE8FDP



RJ45 feedthrough receptacle, D-shape metal flange with the latch lock. Mounting screws included.


The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.



Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.



Features & Benefits

  • Accommodates NE8MC* or any standard RJ45 plug
  • Approved latch lock system
  • Mountable from the front or rear of the panel
  • Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 standard



Title - NE8FDP

Gender – female



Electrical

Contact resistance - < 10 mΩ

Dielectric strength - 1 kVdc

Frequency range - 1 - 100 MHz

Insulation resistance - > 0.5 GΩ

Rated current per contact - 1,5 A

Rated voltage - < 50 V

Transmission performance - CAT 5e

Standard compliance - TIA/EIA 586B, IEC11801



Mechanical

Insertion force - ≤ 20 N

Withdrawal force - ≤ 20 N

Lifetime - > 1000 mating cycles

Panel thickness - max. 4 mm 0.16'

Wiring - Feedthrough

Locking device - Latch lock

Chassis shape – D



Material

Contact plating - 0.2 µm Au over Ni plating

Contacts - Bronze (CuSn8)

Insert - PBTP 15 % GR

Shell - Zinc diecast (ZnAl4Cu1)

Shell plating – Nickel



Environmental

Flammability - UL 94 V-0

Temperature range - -30 °C to +80 °C

More Information
Connector Type Chasis Panel Mount
Manufacturer Neutrik
Metal Type.... Gold Plated
Poles 8 Pole
