Neutrik NE8FDP-R-B Black Angled Feed-through Ethercon Chassis Panel Mount
Multibuy discounts calculated at checkout
- Buy 5 for £12.11 each and save 5%
- Buy 10 for £11.48 each and save 10%
- Buy 15 for £10.84 each and save 15%
- Buy 20 for £10.20 each and save 20%
** Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

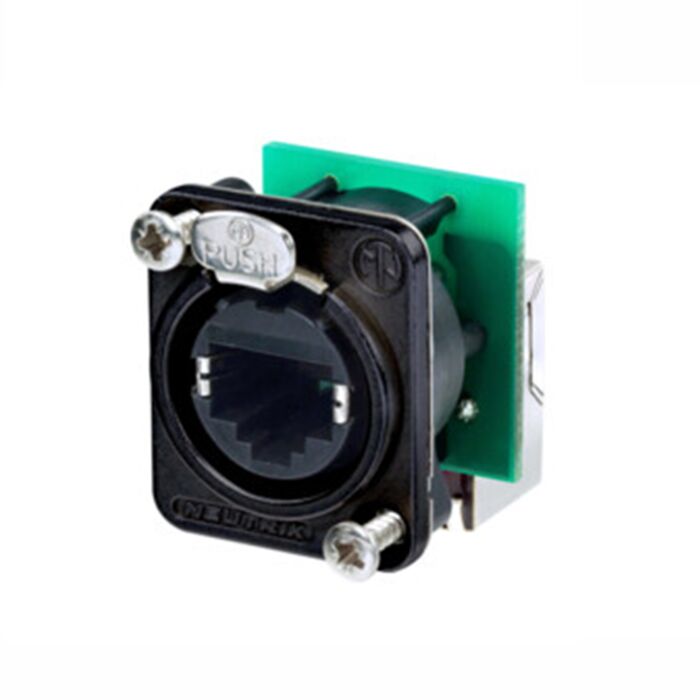

Right angle RJ45 feedthrough receptacle, black D-shape metal flange with latch lock, mounting screws included.
** Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.
Right angle RJ45 feedthrough receptacle, black D-shape metal flange with latch lock, mounting screws included.
The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.
The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.
Features & Benefits
- Right angle CAT5e jack for space saving connections on the rear.
- Accommodates NE8MC* or any standard RJ45 plugs.
- Approved latch lock system.
- Mountable from the front or rear of the panel.
- CAT5e / Class D according to TIA/EIA 568C and ISO/IEC 11801.
- PoE type 4 class 8 (100W) acc. IEEE 802.3bt.
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Panel Mount - Feedthrough |
| Series Range Name | Neutrik etherCON |
| Contact Material | Gold Plated |
| Number of Contacts | 8 Pole |
| Pack Quantity | Pack of 1 |
| Manufacturer URL | Download Data Sheet |
