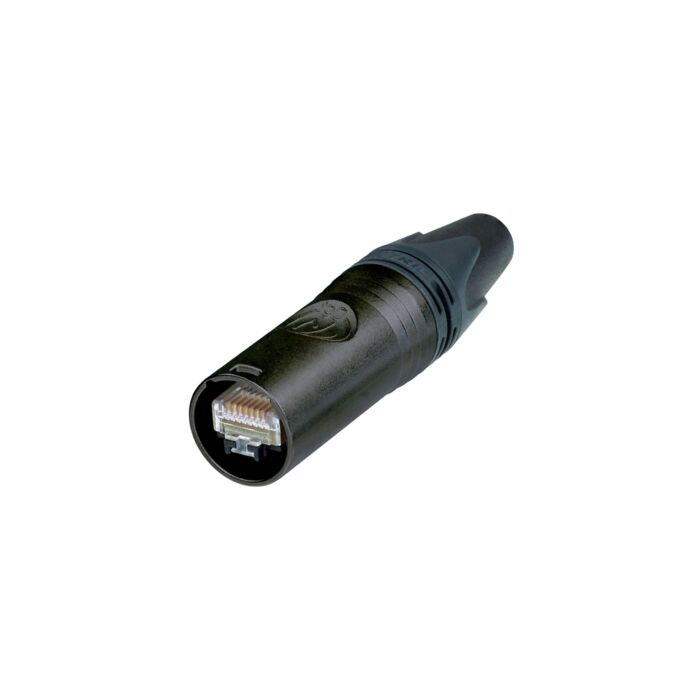

Neutrik NE8MX6-B-T. etherCON Cat. Male plug
£21.05
In stock
We have 104 items in stock!
SKU
CAT_NE8MX6-B-T
Multibuy discounts calculated at checkout
- Buy 5 for £20.00 each and save 5%
- Buy 10 for £18.95 each and save 10%
- Buy 15 for £17.89 each and save 15%
- Buy 20 for £16.84 each and save 20%
- Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
- PoE++ compliant according to 802.3bt Type4
- IP65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W
- Rugged latch lock system million fold proven
- Intermateable with the existing etherCON CAT5 range
- Unique Neutrik chuck-type strain relief
- Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
- PoE++ compliant according to 802.3bt Type4
- IP65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W
- Rugged latch lock system million fold proven
- Intermateable with the existing etherCON CAT5 range
- Unique Neutrik chuck-type strain relief
etherCON CAT6A cable connector self-termination, for insulation diameter ‰¤ 1.1 mm, black chromium
The set NE8MX6 consists of a cable plug carrier offering a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6A compliant RJ45 plug. The set is suitable for a cable diameter range of 7 mm to 9.5 mm and wire gauge of AWG26/1 - AWG24/1 (solid) or AWG27/7 - AWG24/7 (stranded).
Attention! Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.
If the insulation diameter is > 1.1 mm please refer to NE8MX6-B.
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Cable Mount - Crimp |
| Series Range Name | Neutrik etherCON |
| Contact Material | Gold Plated |
| Number of Contacts | 8 Pole |
| Pack Quantity | Pack of 1 |
| Manufacturer URL | Download Data Sheet |
| Data Sheet URL | Download Data Sheet |
