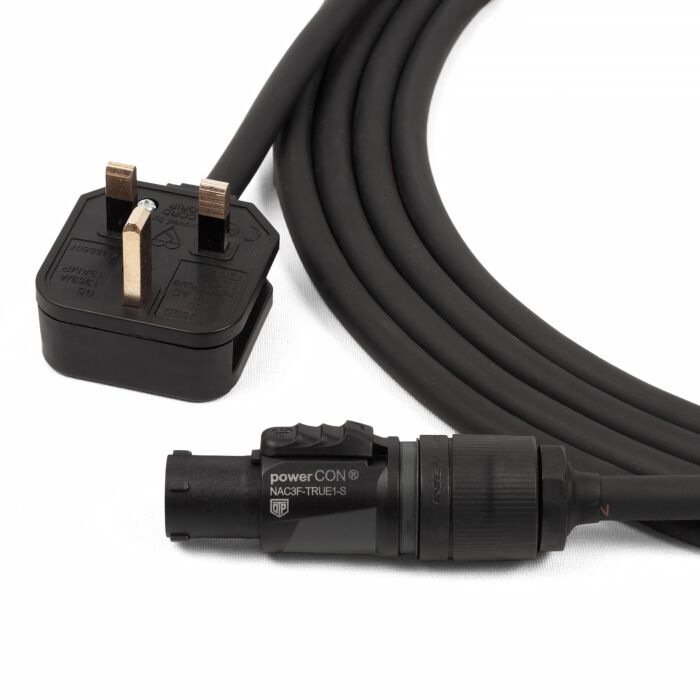

Neutrik True 1 Powercon Female to UK Plug Link Lead. Tough 2.5mm H07RN-F NAC3FX-W

Wiring Notes

So, How does this cable work? This lead provides a secure mains power connection from a UK 13A plug to a TRUE1 female connector. The Titanex H07RN-F cable contains three conductors (Live, Neutral and Earth) rated at 2.5 mm², offering improved current handling and reduced voltage drop compared to 1.5 mm² cable.

Understanding Conductor Sizes

• Cable conductor size directly affects current carrying capacity, voltage drop and mechanical durability
• 1.5 mm² cable is commonly used for standard 16A power distribution and shorter link runs
• 2.5 mm² cable provides increased current capacity and reduced voltage drop over longer distances
• Thicker conductors offer improved robustness under repeated flexing and heavy-duty use
• In professional touring and event environments, 2.5 mm² cable is often preferred for its additional headroom and durability

Why Nexans Titanex Cable?

• Enhanced durability for touring, site and outdoor use
• Excellent abrasion, impact, oil and weather resistance
• Maintains flexibility in low temperatures
• Suitable for repeated deployment and heavy mechanical stress

Why Neutrik Connectors?

• Neutrik connectors are the industry standard
• Secure locking design prevents accidental disconnection
• Reliable electrical contact with high current capacity
• Long-term mechanical durability
• Rated for safe connect and disconnect under load

Why Masterplug Plugs?

• Durable impact-resistant construction
• Fused 13A UK sockets
• Suitable for professional and site power applications
• Reliable performance

Technical Specifications

• Conductors – 3 × 2.5 mm²
• Conductor Material – Stranded copper
• Sheath – Heavy-duty rubber compound
• Connector A – Neutrik NAC3F-TRUE1-L (powerCON TRUE1 Female)
• Connector B – Masterplug HDPT13B-01 13A UK Plug
• Voltage Rating – 230V (application dependent)
• Current Rating – 13A (plug limited)

Standards & Compliance

• Neutrik connectors compliant with relevant IEC/EN standards
• UK 13A fused plug configuration
• Suitable for professional lighting, audio and event power applications
• Assembled in accordance with professional wiring conventions

Part Numbers

• UK Plug – Masterplug HDPT13B-01
• Cable – Nexans TITANEX H07RN-F 3G2.5 - 10055505
• Connector – Neutrik NAC3F-TRUE1-L
