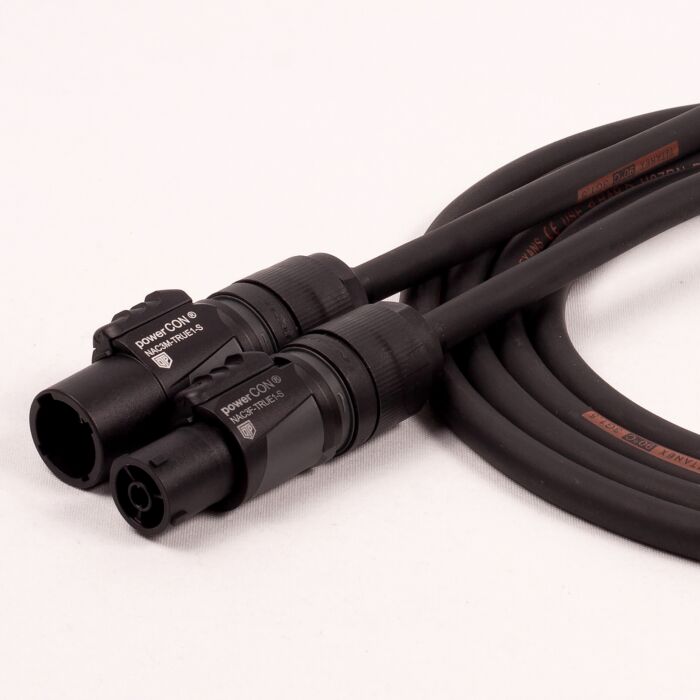

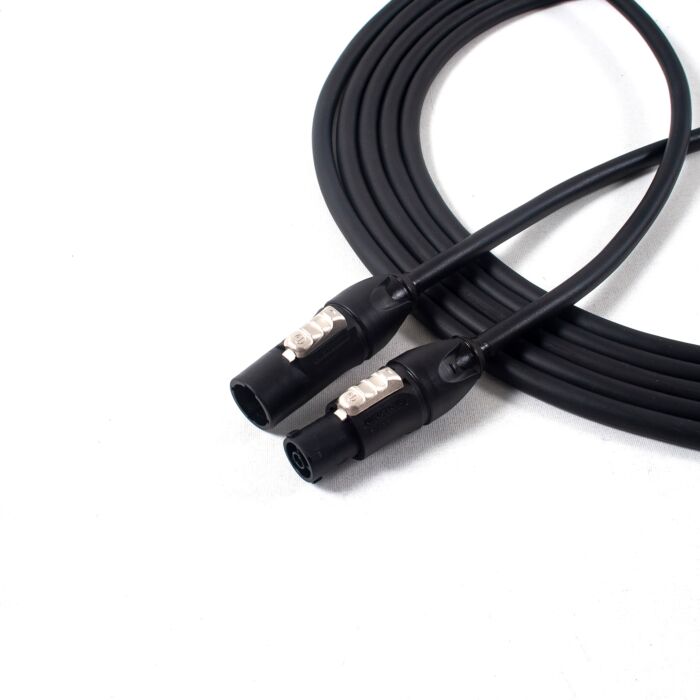

Neutrik True 1 Powercon Male to Female Link Lead. H07RN-F NAC3MX-W to NAC3FX-W

Wiring Notes

How does a TRUE1 link lead work? A TRUE1 power link lead carries single-phase mains power using three conductors: Live (L), Neutral (N) and Protective Earth (PE). The male connector (power out) links directly to the female connector (power in), maintaining correct polarity throughout the run.

Why Titanex H07RN-F?

• Heavy duty rubber sheath for demanding environments
• Excellent flexibility in cold and warm conditions
• Resistant to abrasion, impact and site wear
• Designed for repeated coiling and deployment
• Trusted across touring, stage and industrial applications

Why Neutrik TRUE1?

• NAC3M-TRUE1-S (Male) and NAC3F-TRUE1-S (Female)
• Secure locking connectors
• Rated for connect/disconnect under load (CBC)
• Proven professional standard
• High mechanical durability for touring use

Technical Specifications

• Cable – Nexans Titanex H07RN-F 3 x 1.5mm²
• Cable Construction – Fine stranded copper conductors
• Insulation – Rubber insulated cores
• Outer Jacket – Heavy duty rubber sheath
• Connector A – Neutrik NAC3M-TRUE1-S
• Connector B – Neutrik NAC3F-TRUE1-S
• Rating – 16A
• Professionally assembled and tested

Standards & Compliance

• RoHS compliant materials
• Built to professional mains wiring conventions

Part Numbers

• Connector A – Neutrik NAC3M-TRUE1-S
• Connector B – Neutrik NAC3F-TRUE1-S
• Cable – Titanex H07RN-F 3G1.5mm² (Nexans 20070198-901-05)
