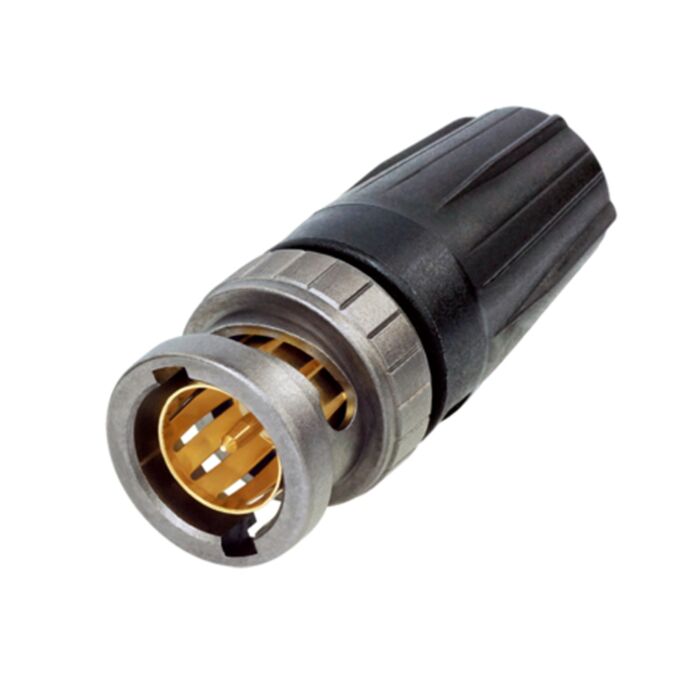

Neutrik UHD NBNC75BUU11X rearTWIST BNC for Van Damme 268-675-000 Belden 1694F
£5.45
In stock
We have 74 items in stock!
SKU
BNC_NBNC75BUU11X
Multibuy discounts calculated at checkout
- Buy 5 for £5.18 each and save 5%
- Buy 10 for £4.91 each and save 10%
- Buy 15 for £4.63 each and save 15%
- Buy 20 for £4.36 each and save 20%
The rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals.
The rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals.
Features & Benefits
• Optimized contact pin and insulator design for UHD-data transmissions
• Proven rearTWIST technology
• Swiss antraloy plating
• Fully compatible with conventional BNC chassis connectors
• Improved return loss values at high frequencies
Crimp Dimensions
In order to achieve optimum return loss values at high frequencies the crimp dimension of the contact pin has been reduced.
• Pin: 1.07 mm
• Shield: 7.36 mm
• Crimp die: DIE-R-BNCX-PU
Approved Cables
To guarantee high performance for each cable-connector combination at high frequencies Neutrik measured common COAX cables which are specifically designed for ultra high definition transmission (UHD). Find all approved cables listed below.
Suitable cables:
Cordial CVI 10-48 HD, Draka 1.0/4.8 AF, Draka 755-901/5, Percon VK7
UHD optimized cables:
Argosy Image 1000, Klotz V10/48, Klotz V10/48H, TMB-ProPlex RG6
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Cable Mount - Crimp |
| Series Range Name | Neutrik rearTWIST UHD |
| Contact Material | Gold Plated |
| Number of Contacts | 2 Pole |
| Pack Quantity | Pack of 1 |
| Manufacturer URL | Download Data Sheet |
| Data Sheet URL | Download Data Sheet |
