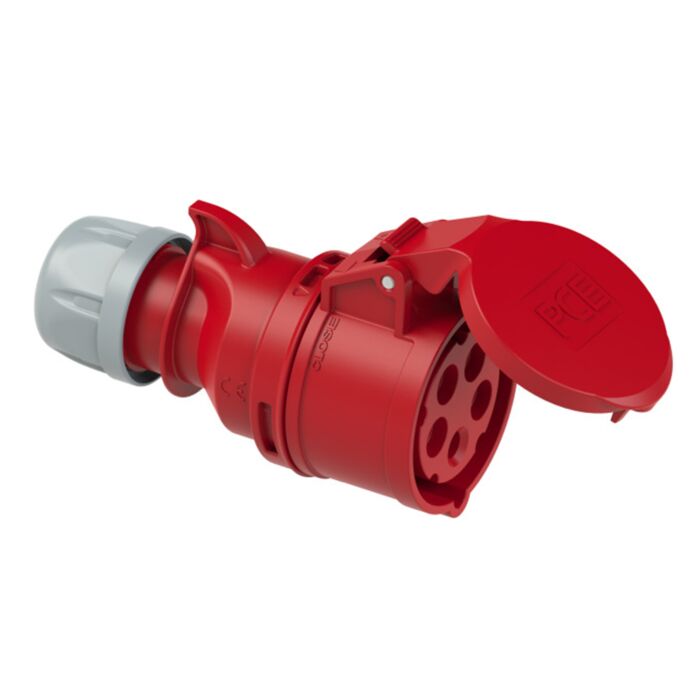

PCE 32A 3P+N+E 400V. 3 Phase. Red Cable Mount Female Socket. IP44 (225-6)

PCE is specialized in the production of industrial plugs, sockets, and power distribution boxes. During the past few years, the company has gone through a phase of rapid development and is now one of the world’s leading manufacturers of CEE IEC60309 plugs, sockets and accessories.

• housing material: PA6
• rated current: 32A
• number of poles: 5 (3P+N+PE)
• clock position: 6h
• rated voltage/frequency: 200/346V~ - 240/415V~ / 50+60Hz
• contacts: brass
• connection technology: screw terminals
• IP protection class: IP44/IP54

PCE plugs and sockets are produced from POLYAMIDE 6. The main characteristics of this material are:

• excellent impact resistance combined with high rigidity and solidity,
• high thermal stability (self-extinguishing),
• very good insulating qualities,
• high disruptive strength,
• high abrasion resistance,
• high weathering resistance,
• very good chemical resistance to various chemicals,
• free from cadmium and halogen (fluorine, chlorine, bromine, jodine, astatine)
• conform to RoHS-directiv 2011/65/EU
