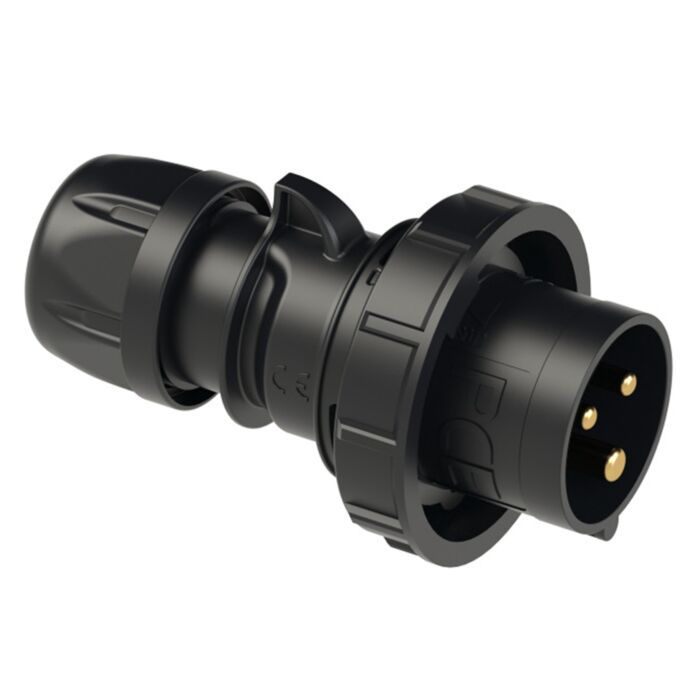

PCE 32amp 2P+E CEE Midnight Black Cable Mount Male Plug. IP67 (0232-6x)

PCE is specialized in the production of industrial plugs, sockets, and power distribution boxes. During the past few years, the company has gone through a phase of rapid development and is now one of the world’s leading manufacturers of CEE IEC60309 plugs, sockets and accessories.

• housing material: PA6
• rated current: 32A
• number of poles: 3 (2P+PE)
• clock position: 6h
• rated voltage/frequency: 200-250V~ / 50+60Hz
• contacts: brass
• connection technology: screw terminals
• IP protection class: IP66/IP67

PCE plugs and sockets are produced from POLYAMIDE 6. The main characteristics of this material are:

• excellent impact resistance combined with high rigidity and solidity,
• high thermal stability (self-extinguishing),
• very good insulating qualities,
• high disruptive strength,
• high abrasion resistance,
• high weathering resistance,
• very good chemical resistance to various chemicals,
• free from cadmium and halogen (fluorine, chlorine, bromine, jodine, astatine)
• conform to RoHS-directiv 2011/65/EU
