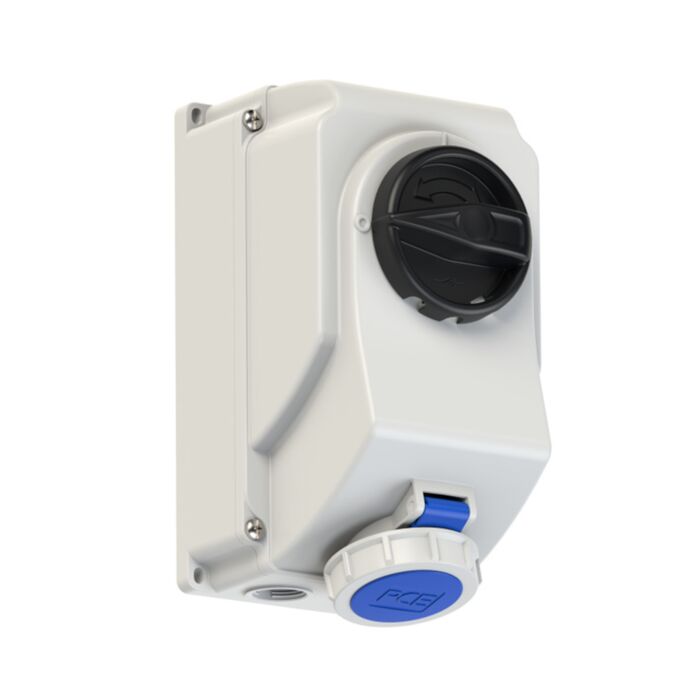

PCE CEE-Switched Interlocked Socket 16A 3pole IP66 & IP67 - 75132-6
£161.80
In stock
We have 1 items in stock!
Only 1 left
SKU
MAINS_16a.Switched.Interlock.3pole.GY
Multibuy discounts calculated at checkout
- Buy 5 for £153.71 each and save 5%
- Buy 10 for £145.62 each and save 10%
- Buy 15 for £137.53 each and save 15%
- Buy 20 for £129.44 each and save 20%
- CEE-switched interlocked socket 16A 3p 6h IP66/IP67
- housing material: PC/ABS
- rated current: 16A
- number of poles: 3 (2P+PE)
- clock position: 6h
- rated voltage/frequency: 200-250V~ / 50+60Hz
- contacts: brass nickel plated
- connection technology: screw terminals
- wall mounting, mechanical interlock
- switch: ON/OFF PCE-Merz ML0; EN 60947-3; AC22A, 10kA
- cable entry: top, bottom or rear (incl. threaded blind cap)
- IP protection class: IP66/IP67
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Connection Type | CEEform Panel Mount |
| Mounting Method | Panel Mount - Screw Terminal |
| Contact Material | Solid Brass |
| Number of Contacts | 3 Pole |
| Current Rating | 16 amps |
| IP Rating | IP67 |
| Pack Quantity | Pack of 1 |
| Manufacturer URL | Download Data Sheet |
